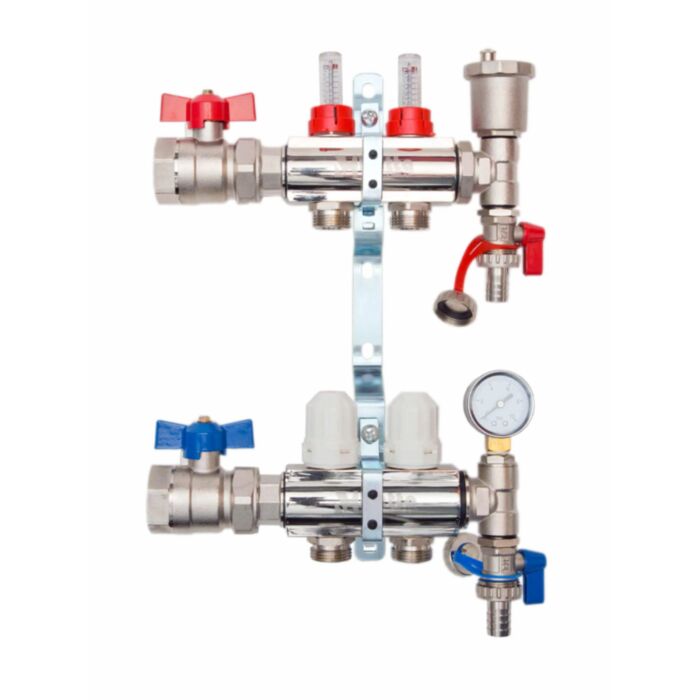

The Hetta Pre-Assembled 2 Port Manifold Nickel Plated is expertly designed for underfloor heating systems. Featuring durable nickel plating, it includes isolating ball valves, adjustable flow meters, and automatic air vents. With a compact size of 270mm high and 233mm wide, it operates at a maximum pressure of 6Bar and temperature of 105°C, ensuring efficient heating distribution.

Features & Benefits:

• Pre-assembled design for easy installation.
• Two ports for efficient underfloor heating distribution.
• Includes isolating ball valves for flow control.
• Features adjustable flow meters for precise heating management.
• Equipped with fill and drain points for convenience.
• Automatic air vents to prevent air locks in the system.
• Durable nickel plating for enhanced corrosion resistance.
• Compact size fits various installation spaces.

Applications:

• Used to distribute heating flow in underfloor heating systems.
• Facilitates connection of multiple underfloor heating circuits.
• Enables easy maintenance with isolating ball valves and automatic air vents.
• Compatible with 1" heating pipe outlets and ¾" Eurokonus threads.
• Pre-assembled for quick installation in heating systems.

Technical Data:

• Brand - Hetta
• Product Type - Pre-Assembled Distribution Manifold
• Material - Brass
• Finish - Nickel Plated
• Colour - Silver
• Height - 270mm
• Width - 233mm
• Maximum Working Pressure - 6Bar
• Maximum Working Temperature - 105°C
• Maximum Test Pressure - 10Bar
• Threads - 1" Heating pipe outlet
• Outlet Thread - ¾" Eurokonus
• Number of Ports - 2

Transform your underfloor heating system today with the Hetta Pre-Assembled 2 Port Manifold Nickel Plated, available now online or in our London shops, featuring everything you need for seamless installation and optimal flow control!
