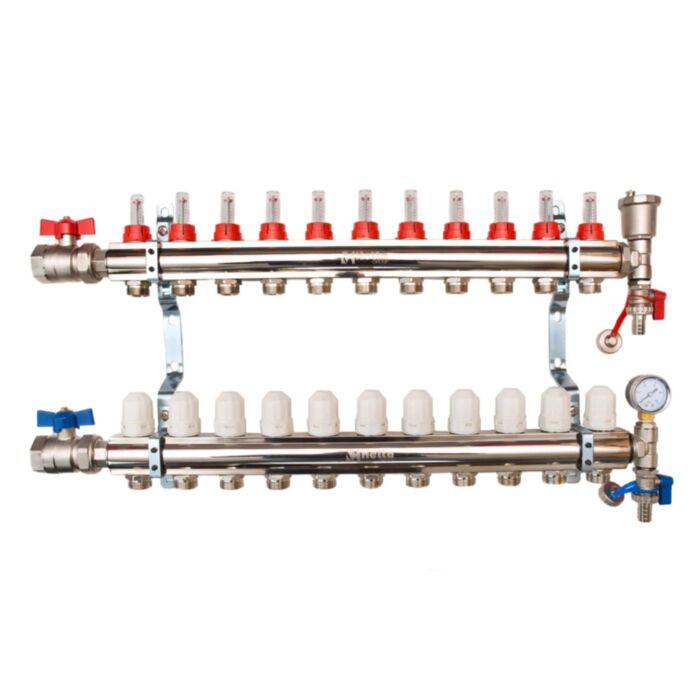

The Hetta Pre-Assembled 11 Port Manifold Nickel Plated is expertly designed for efficient distribution of heating across multiple underfloor heating circuits. Featuring durable nickel plating, it includes isolating ball valves, adjustable flow meters, and automatic air vents. With a compact size of 270mm high and 683mm wide, it operates at a maximum pressure of 6Bar and temperature of 105°C, ensuring reliable performance. Ideal for modern heating solutions.

Features & Benefits:

• Pre-assembled design for easy installation.
• 11 ports for efficient distribution of underfloor heating.
• Includes isolating ball valves for precise control.
• Features adjustable flow meters for optimal performance.
• Equipped with fill and drain points for convenience.
• Automatic air vents to prevent air locks in the system.
• Durable nickel plating for enhanced corrosion resistance.
• Compact dimensions for versatile installation options.

Applications:

• Distributes heating flow between underfloor heating circuits.
• Connects multiple heating circuits in a single system.
• Facilitates easy maintenance with isolating ball valves.
• Allows for flow adjustment with adjustable flow meters.
• Enables filling and draining of the heating system.
• Includes automatic air vents for efficient operation.

Technical Data:

• Brand - Hetta
• Product Type - Pre-Assembled Distribution Manifold
• Material - Brass
• Finish - Nickel Plated
• Colour - Silver
• Height - 270mm
• Width - 683mm
• Maximum Working Pressure - 6Bar
• Maximum Working Temperature - 105°C
• Maximum Test Pressure - 10Bar
• Threads - 1" Heating pipe outlet
• Outlet Thread - ¾" Eurokonus
• Number of Ports - 11

Transform your underfloor heating system today with the Hetta Pre-Assembled 11 Port Manifold Nickel Plated, available now online or in our London shops, designed for effortless installation and optimal flow distribution!
