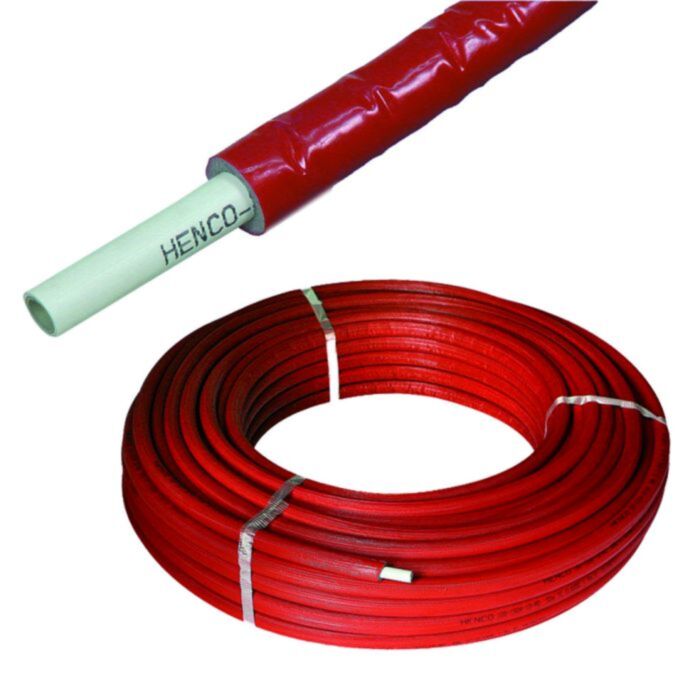

Henco multilayer pipe with all the advantages of plastic and metal and with 13mm of a round or eccentric thermal insulating material.

Features:

• Butt welded aluminium pipe.
• 100% oxygen-tight and water vapour diffusion tight.
• Insulation layer made from extruded PE foam with a closed cell, that has a sturdy outer layer made from PE with a meshed vapour tight structure.
• Low coefficient of linear expansion, similar to metal pipe.
• Entirely corrosion-resistant, also resistant against chemicals and electrochemicals.
• Sound-insulation similar to entirely plastic pipe.
• Electron beam crosslinked inner and outer pipe.
• High resistance to pressure and temperature.
• Smooth surface, less loss of pressure.
• Light as synthetic piping.
• Flexible, easy to bend even at low temperatures, retains shape after bending.

Applications:

• Potable water
• Heating
• Cooling
• Compressed Air
• Demi Water
• Underfloor Heating
• Sanitary

Technical data:

• Brand - Henco
• Range - Standard
• Product Type - Pre Insulated Multilayer Pipe Coil
• Colour - Red
• Material Inner Layer - Plastic
• Material Intermediate Layer - Aluminium
• Material Insulation Layer - PE Foam
• Pipe Wall Thickness - 3mm
• Insulation Wall Thickness - 13mm
• Diameter - 32mm
• Length - 25mtr
• Max. Operating Pressure - 16Bar
• Expansion Coefficient - 0.03 mm/(m.K)
• Max. Medium Temperature (Momentarily) - 95°C
• Net Weight - 0.438kg
• Maximum Operating Pressure Liquid - 16Bar
