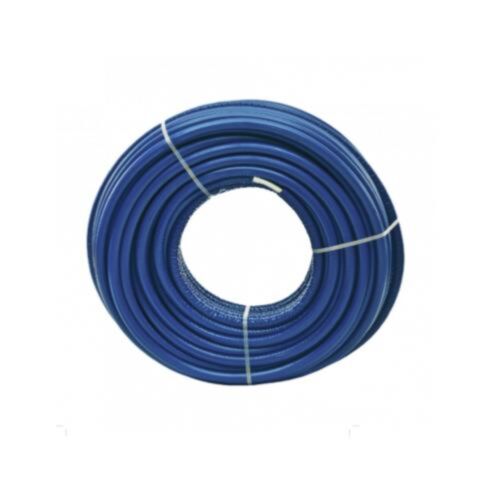

The multilayer pipes come with a round or eccentric thermal insulating material.

Features:

• The insulating material is made from extruded PE foam with a closed cell.
• The PE foam has a sturdy outer layer made from PE with a red or blue meshed vapour tight structure.
• This protects the foam against damage, so that the insulating properties of the product are not lost even during rough building work.

Applications:

• Potable water
• Heating
• Cooling
• Compressed Air
• Demi Water
• Sanitary

Technical data:

• Brand - Henco
• Range - RIXc
• Product Type - Pre Insulated Multilayer Pipe Coil
• Colour - Blue
• Material Inner Layer - Plastic
• Material Intermediate Layer - Aluminium
• Pipe Wall Thickness - 2mm
• Insulation Wall Thickness - 13mm
• Diameter - 20mm

• Wall Thickness - 2mm
• Length - 50mtr
• Max. Operating Pressure - 10Bar
• Expansion Coefficient - 0.03 mm/(m.K)
• Max. Medium Temperature (Momentarily) - 95°C
• Net Weight - 0.204kg
