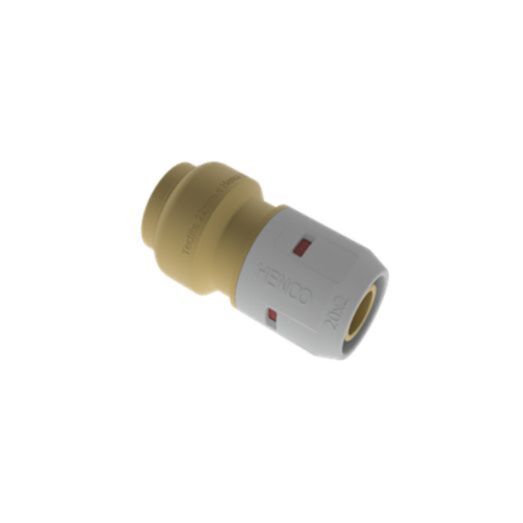

Henco Pro-Fit is innovation, this push fittings provide a fast and straightforward installation process without the necessity for mandatory pipe calibration. The internal design of the Henco Pro-Fit range eliminates the need for inserts too. This range ensures a secure and reliable connection, featuring highly visible control windows with a red indicator for added assurance.

Features:

• An important part of the range are the transition couplers that makes it possible to go from Henco MLCP Diameter Connection 1 to Copper Diameter Connection 2.
• Effortless installation process with no need for press tools.
• No mandatory pipe calibration is required for installation.
• Push-Fit Design: Easily push-fit onto existing pipes for a convenient setup.
• Non-demountable design ensures a secure, flame-free connection, eliminating the need for a hot works permit.
• The Henco Pro-Fit connection is fail-proof, requiring no insert for added convenience.
• EDPM O-Ring Seal: The EDPM O-ring seals the inside of the pipe, preventing issues with potentially damaged or scratched pipes.
• The body is made of high-quality brass CW617 combining robustness with lightweight characteristics.
• Suitable for use with Henco Multilayer composite pipes; when using the dedicated transition coupler, it is also compatible with copper, PEX, or PE-RT pipes (follow the instructions of the pipe manufacturer to use the correct insert).
• Highly visible control windows: when the Henco MLCP is fully pushed into the Henco Pro-Fit fitting, the red indicator in the visible control windows turns white, guaranteeing a secure and trusted connection under defined operating conditions.

Applications:

• Hot and cold potable water
• Hydronic heating
• Chilled water with Glycol
• Cooling water with Glycol

Technical data:

• Brand - Henco
• Range - Pro Fit
• Product Type - Push Fit Transition Coupler
• Material - Brass
• Diameter Connection 1 - 26mm
• Diameter Connection 2 - 28mm
• Max. Operating Pressure - 10Bar
• Max. Operating Temperature - 95°C

Standards & Certifications:

• WRAS Approved
• Quality Management system to EN ISO 9001 and ISO 14001.
