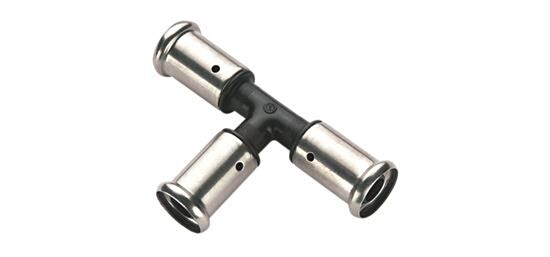

Henco Press Fit Tee PVDF Plastic 20x20x20mm

Name: Henco Press Fit Tee PVDF Plastic 20x20x20mm
Brand: Henco
SKU: 109137256
Price: 8.83 GBP
Availability: InStock

Henco Press Fit Tee PVDF Plastic 20x20x20mm

In stock

Product Code

109137256

These PVDF (Polyvinylidene fluoride) press fittings in combination with multilayer pipe, are a completely corrosion-free system. The synthetic press fittings are made from injection moulded PVDF...Read more

DISCLAIMER

This product qualifies for next working day delivery provided it is in stock and your order is placed by 1pm Monday to Thursday. For full T&C's read our Delivery Information.

Your Price

£8.83 £7.36

Out of stock

Product Information

These PVDF (Polyvinylidene fluoride) press fittings in combination with multilayer pipe, are a completely corrosion-free system. The synthetic press fittings are made from injection moulded PVDF.

Features:

Highly resistant to pressure and temperature.
Excellent mechanical strength.
Extreme flexibility, bending up to 10° is possible.
Perfectly suited for drinking water and food.
Highly resistant to chemicals and corrosion.
Embedding is possible without extra protection.

Applications:

Potable Water
Heating
Cooling
Sanitary
Compressed Air
Demi Water

Technical data:

Brand - Henco
Product Type - Press Fit Tee
Max. Operating Pressure - 16Bar
Material - Polyvinylidene Fluoride (PVDF)
Outer Pipe Diameter Connection 1 - 20mm
Contour Code Connection 1 - TH
Length Of Connection 1 - 49mm
Outer Pipe Diameter Connection 2 - 20mm
Contour Code Connection 2 - TH
Length Of Connection 2 - 49mm
Working Length Connection 2 - 22mm
Shape - Tee
Material Sealing - Ethylene-Propylene Diene Monomer Rubber (EPDM)
With Drain Valve - No
Net Weight - 0.0625kg

Manufacturer Code
9PK-202020
Delivery Only
No
Brand
Henco
Product Type
Press Fit Tee
Material
Polyvinylidene Fluoride (PVDF)
Max. Pressure
16Bar
