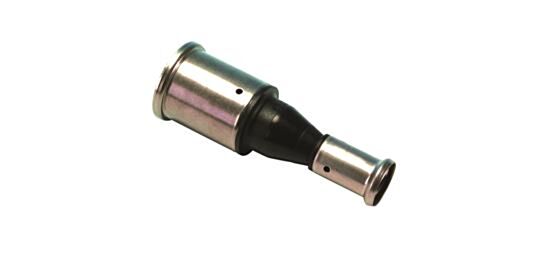

Henco Press Fit Reducing Coupler PVDF Plastic 26x16mm

In stock
Product Code
109137234
These PVDF (Polyvinylidene fluoride) press fittings in combination with multilayer pipe, are a completely corrosion-free system. The synthetic press fittings are made from injection moulded PVDF...Read more

DISCLAIMER

This product qualifies for next working day delivery provided it is in stock and your order is placed by 1pm Monday to Thursday. For full T&C's read our Delivery Information.

Your Price
£6.60 £5.50

Add to Project List

These PVDF (Polyvinylidene fluoride) press fittings in combination with multilayer pipe, are a completely corrosion-free system. The synthetic press fittings are made from injection moulded PVDF.

Features:

  • Highly resistant to pressure and temperature.
  • Excellent mechanical strength.
  • Extreme flexibility, bending up to 10Degree is possible.
  • Perfectly suited for drinking water and food.
  • Highly resistant to chemicals and corrosion.
  • Embedding is possible without extra protection.

Applications:

  • Potable Water
  • Heating
  • Cooling
  • Sanitary
  • Compressed Air
  • Demi Water

Technical data:

  • Brand - Henco
  • Product Type - Press Fit Reducing Coupler
  • Max. Operating Pressure - 16Bar
  • Material - Polyvinylidene Fluoride (PVDF) Plastic
  • Outer Pipe Diameter Connection 1 - 26mm
  • Contour Code Connection 1 - TH
  • Length Of Connection 1 - 42mm
  • Outer Pipe Diameter Connection 2 - 16mm
  • Contour Code Connection 2 - TH
  • Length Of Connection 2 - 42mm
  • Working Length Connection 2 - 15mm
  • Shape - Straight
  • Material Sealing - Ethylene-Propylene Diene Monomer Rubber (EPDM)
  • Zeta Value - 0.75
  • With Drain Valve - No
  • Net Weight - 0.0495kg

  • Manufacturer Code
    16PK-2616
  • Product Type
    Press Fit Reducing Coupler
  • Material
    Polyvinylidene Fluoride (PVDF) Plastic
  • Diameter Connection 1
    26mm
  • Diameter Connection 2
    16mm
  • Max. Operating Pressure
    16Bar
  • Brand
    Henco
  • Brand
    Henco
