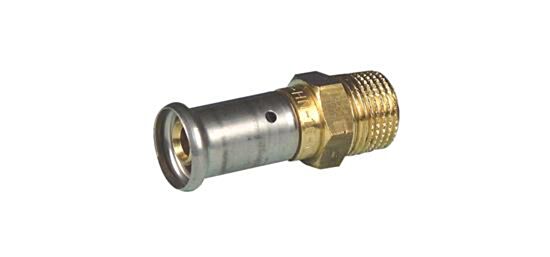

Made from CW617N brass. These fittings offer great advantages with regard to corrosion and they are also better for the environment. This type of adaptor would be used when transitioning from an iron pipe to another component, fitting, or pipe that has a female-threaded opening.

Features:

• Buffer ring that prevents direct galvanic contact between the aluminium of the pipe and the brass of the fitting.
• This excludes the possibility of electrolysis occurring.
• Equipped with O-rings made from EPDM and RVS pressure sleeves with 3 inspection windows.
• In order to prevent assembly errors, the dimensions and type of press profile which can be pressed are shown on the RVS sleeves.

Technical data:

• Brand - Henco
• Product Type - Press Fit Male Iron Adaptor
• Material - Brass
• Diameter Connection 1 - 20mm
• Diameter Connection 2 - ½ "
• Max. Operating Pressure - 16Bar

Standards & Certifications:

• WRAS approved
