The body of the fitting is made from CW617N brass. These fittings offer great advantages with regard to corrosion and they are also better for the environment. Features: Th...Read more
DISCLAIMER
This product qualifies for next working day delivery provided it is in stock and your order is placed by 1pm Monday to Thursday. For full T&C's read our Delivery Information.
The body of the fitting is made from CW617N brass. These fittings offer great advantages with regard to corrosion and they are also better for the environment.
Features:
The fitting has a buffer ring that prevents direct galvanic contact between the aluminium of the pipe and the brass of the fitting.
This excludes the possibility of electrolysis occurring.
The fitting is equipped with O-rings made from EPDM and RVS pressure sleeves with 3 inspection windows.
In order to prevent assembly errors, the dimensions and type of press profile which can be pressed are shown on the RVS sleeves
Applications:
Potable Water
Heating
Cooling
Sanitary
Compressed Air
Technical data:
Brand - Henco

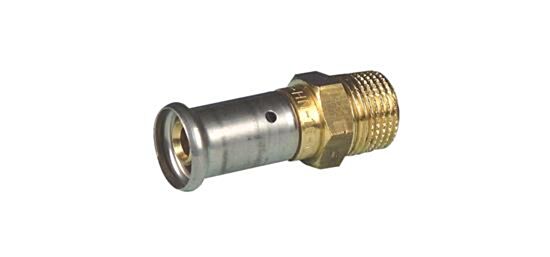

Product Type - Press Fit Male Iron Adaptor
Max. Operating Pressure - 16Bar
Material - Brass
Outer Pipe Diameter Connection 1 - 16mm
Contour Code Connection 1 - TH
Length Of Connection 1 - 36mm
Contour Code Connection 2 - TH
Outer Pipe Diameter Connection 2 -¾"
Length Of Connection 2 - 18mm
Working Length Connection 2 - 18mm
Shape - Straight
Material Sealing - Ethylene-Propylene Diene Monomer Rubber (EPDM)
If no Data and Safety sheets are visible here please send an email request to [email protected]
