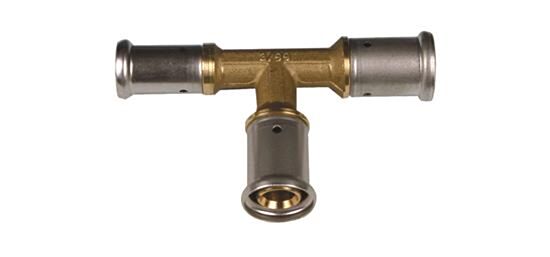

The body of the fitting is made from CW617N brass. These fittings offer great advantages with regard to corrosion and they are also better for the environment.

Features:

• The fitting has a buffer ring that prevents direct galvanic contact between the aluminium of the pipe and the brass of the fitting.
• This excludes the possibility of electrolysis occurring.
• The fitting is equipped with O-rings made from EPDM and RVS pressure sleeves with 3 inspection windows.
• In order to prevent assembly errors, the dimensions and type of press profile which can be pressed are shown on the RVS sleeves

Applications:

• Potable Water
• Heating
• Cooling
• Sanitary
• Compressed Air

Technical data:

• Brand - Henco
• Product Type - Press Fit Line Reducing Tee
• Max. Operating Pressure - 16Bar
• Material - Brass
• Outer Pipe Diameter Connection 1 - 20mm
• Contour Code Connection 1 - TH
• Length Of Connection 1 - 31mm
• Contour Code Connection 2 - TH
• Outer Pipe Diameter Connection 2 -16mm
• Length Of Connection 2 - 31mm
• Shape - Tee
• Material Sealing - Ethylene-Propylene Diene Monomer Rubber (EPDM)
• Net Weight - 0.123kg
