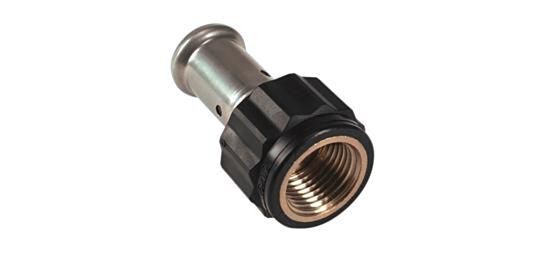

A PVDF press fitting with CW602 Brass that in combination with multilayer pipes, is a completely corrosion-free plumbing system. The Press Fit PVDF plumbing system is best suited for situations demanding robust chemical resistance, mechanical durability, and efficient installation processes.

Features:

• The synthetic press fittings are made from injection moulded PVDF (Polyvinylidene fluoride).
• Highly resistant to pressure and temperature.
• Excellent mechanical strength.
• Extreme flexibility, bending up to 10° is possible.
• Perfectly suited for drinking water and food.
• Highly resistant to chemicals and corrosion.
• Embedding is possible without extra protection.
• Suitable to use in potable water, heating, compressed air, cooling, and sanitary systems.

Technical data:

• Brand - Henco
• Product Type - Press Fit Female Adaptor
• Material - PVDF Plastic / Brass
• Diameter Connection 1 - 40mm
• Diameter Connection 2 - 1¼"
• Max. Operating Pressure - 10Bar

Standards & Certifications:

• WRAS approved
