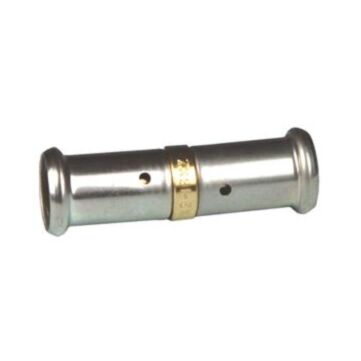

Made from CW617N brass. These fittings offer great advantages with regard to corrosion and they are also better for the environment.

Features:

• Buffer ring that prevents direct galvanic contact between the aluminium of the pipe and the brass of the fitting.
• This excludes the possibility of electrolysis occurring.
• Equipped with O-rings made from EPDM and RVS pressure sleeves with 3 inspection windows.
• In order to prevent assembly errors, the dimensions and type of press profile which can be pressed are shown on the RVS sleeves.
• Suitable to use in potable water, heating, compressed air, cooling, and sanitary systems.

Technical data:

• Brand - Henco
• Product Type - Press Fit Coupler
• Material - Brass
• Diameter - 26mm
• Max. Operating Pressure - 16Bar

Standards & Certifications:

• WRAS approved
