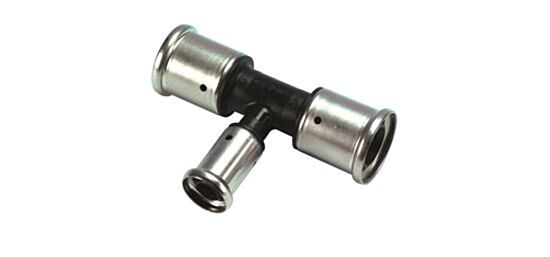

Henco Press Fit Centre Reducing Tee PVDF Plastic 26x16x26mm

Henco Press Fit Centre Reducing Tee PVDF Plastic 26x16x26mm

In stock
Product Code
109137228
These PVDF (Polyvinylidene fluoride) press fittings in combination with multilayer pipe, are a completely corrosion-free system. The synthetic press fittings are made from injection moulded PVDF...Read more

DISCLAIMER

This product qualifies for next working day delivery provided it is in stock and your order is placed by 1pm Monday to Thursday. For full T&C's read our Delivery Information.

Your Price
£11.74 £9.78

Add to Project List

Out of stock

Out of stock

These PVDF (Polyvinylidene fluoride) press fittings in combination with multilayer pipe, are a completely corrosion-free system. The synthetic press fittings are made from injection moulded PVDF.

Features:

  • Highly resistant to pressure and temperature.
  • Excellent mechanical strength.
  • Extreme flexibility, bending up to 10° is possible.
  • Perfectly suited for drinking water and food.
  • Highly resistant to chemicals and corrosion.
  • Embedding is possible without extra protection.

Applications:

  • Potable Water
  • Heating
  • Cooling
  • Sanitary
  • Compressed Air
  • Demi Water

Technical data:

  • Brand - Henco
  • Product Type - Press Fit Centre Reducing Tee
  • Max. Operating Pressure - 16Bar
  • Material - Polyvinylidene Fluoride (PVDF) Plastic
  • Outer Pipe Diameter Connection 1 - 26mm
  • Contour Code Connection 1 - TH
  • Length Of Connection 1 - 49mm
  • Outer Pipe Diameter Connection 2 - 16mm
  • Contour Code Connection 2 - TH
  • Length Of Connection 2 - 53mm
  • Working Length Connection 2 - 26mm
  • Shape - Tee
  • Material Sealing - Ethylene-Propylene Diene Monomer Rubber (EPDM)
  • With Drain Valve - No
  • Net Weight - 0.0873kg

  • Manufacturer Code
    10PK-261626
  • Delivery Only
    No
  • Brand
    Henco
  • Product Type
    Press Fit Centre Reducing Tee
  • Material
    Polyvinylidene Fluoride (PVDF)
  • Max. Pressure
    16Bar
