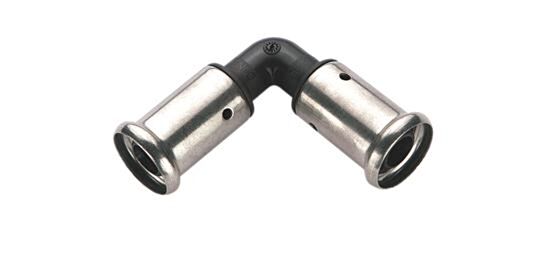

Henco Press Fit 90° Elbow PVDF Plastic 20x20mm

Name: Henco Press Fit 90° Elbow PVDF Plastic 20x20mm
Brand: Henco
SKU: 109137239
Price: 5.88 GBP
Availability: InStock

Henco Press Fit 90° Elbow PVDF Plastic 20x20mm

In stock

Product Code

109137239

These PVDF (Polyvinylidene fluoride) press fittings in combination with multilayer pipe, are a completely corrosion-free system. The synthetic press fittings are made from injection moulded PVDF...Read more

DISCLAIMER

This product qualifies for next working day delivery provided it is in stock and your order is placed by 1pm Monday to Thursday. For full T&C's read our Delivery Information.

Your Price

£5.88 £4.90

Out of stock

Product Information

These PVDF (Polyvinylidene fluoride) press fittings in combination with multilayer pipe, are a completely corrosion-free system. The synthetic press fittings are made from injection moulded PVDF.

Features:

Highly resistant to pressure and temperature.
Excellent mechanical strength.
Extreme flexibility, bending up to 10° is possible.
Perfectly suited for drinking water and food.
Highly resistant to chemicals and corrosion.
Embedding is possible without extra protection.

Applications:

Potable Water
Heating
Cooling
Sanitary
Compressed Air
Demi Water

Technical data:

Brand - Henco
Product Type - Press Fit Elbow
Angle - 90°
Max. Operating Pressure - 16Bar
Material - Polyvinylidene Fluoride (PVDF) Plastic
Outer Pipe Diameter Connection 1 - 20mm
Contour Code Connection 1 - TH
Length Of Connection 1 - 49.3mm
Outer Pipe Diameter Connection 2 - 20mm
Contour Code Connection 2 - TH/BE
Length Of Connection 2 - 49.3mm
Working Length Connection 2 - 25mm
Shape - Bend
Material Sealing - Ethylene-Propylene Diene Monomer Rubber (EPDM)
Zeta Value - 1.87
With Drain Valve - No
Net Weight - 0.0422kg

Manufacturer Code
1PK-2020
Delivery Only
No
Brand
Henco
Product Type
Press Fit Elbow
Material
Polyvinylidene Fluoride (PVDF) Plastic
Angle
90°
Max. Pressure
16Bar
