Compression fittings are most commonly used with hard tubing because the tubing wall must be rigid enough to resist the compression forces applied by the ferrule. Common applications include met...Read more
DISCLAIMER
This product qualifies for next working day delivery provided it is in stock and your order is placed by 1pm Monday to Thursday. For full T&C's read our Delivery Information.
Compression fittings are most commonly used with hard tubing because the tubing wall must be rigid enough to resist the compression forces applied by the ferrule. Common applications include metallic tubing (such as stainless steel or copper) and stiff plastic tubing (such as PEEK, nylon, Teflon, Kynar, or polyethylene).
Features:

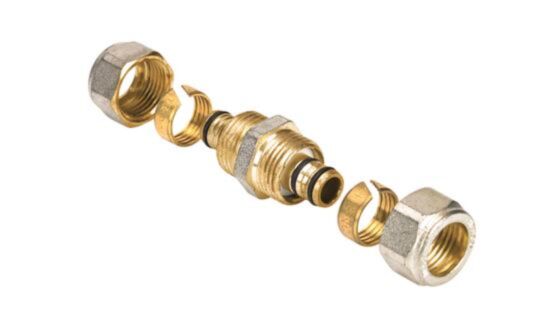

The body of the Henco fittings is made from brass CuZn40Pb2 (CW617N).
The fittings are provided with O-rings and a union nut.
The compression fittings have a synthetic buffer ring to prevent electrolysis between the brass and the aluminium.
Henco screw/compression fittings can be used for all applications with a maximum working pressure up to 10Bar, except for pipes which are built in floors or walls.
Applications:
Potable Water
Heating
Cooling
Sanitary
Technical data:
Brand - Henco
Product Type - Compression Fitting Coupler
Max. Operating Pressure - 10Bar
Material - Brass
Outer Pipe Diameter Connection 1 - 16mm
Length of Connection 1 - 26mm
Outer Pipe Diameter Connection 2 - 16mm
Length of Connection 2 - 26mm
Working Length Connection 2 - 23mm
Shape - Straight
Material Sealing - Ethylene-Propylene Diene Monomer Rubber (EPDM)
