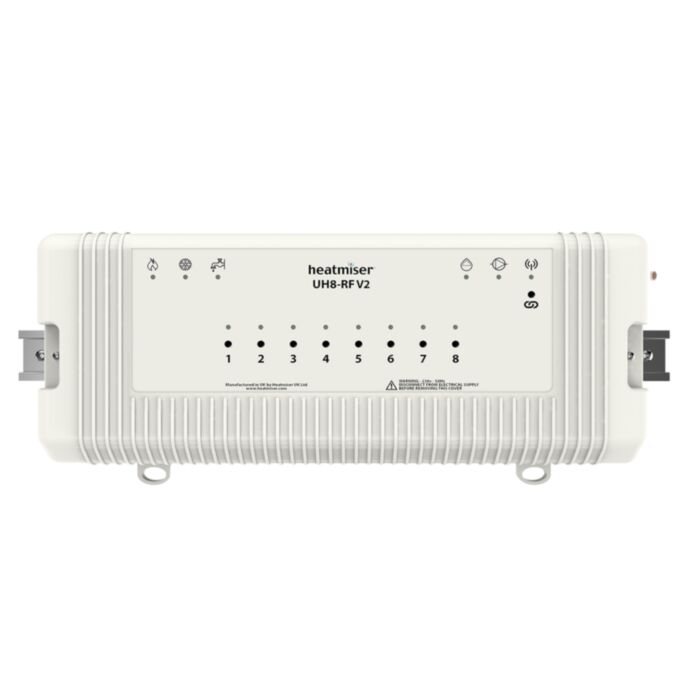

Heatmiser V2 8 Zone Wireless Wiring Centre 230V

A wireless wiring center designed to work with our Slimline-RF and neoAir Thermostats.

Features:

• The UH8-RF v2 provides central switching and is therefore ideally situated next to the underfloor heating manifold.
• 8 zones can be controlled as well as providing an output for a hot water cylinder.
• On demand from any zone, a 230v output is provided to switch the relevant zone actuators, underfloor heating pump and valve.
• A volt free connection is supplied for the boiler, making it compatible with almost all types of boilers.
• The boiler signal can also be sent via RF to the RF Switch, providing the installer a totally wireless solution.
• Up to 6 actuators can be connected to each zone.
• An external aerial is available for use when the UH8-RF is being mounted in a metal cupboard or when the wireless signal is restricted.
• A software option in the thermostat allows you to configure which zones are underfloor heating and which zones are radiators.
• Radiator zones will not enable the underfloor heating pump, valve and boiler when there is a call for heat.
• Radiator zones should enable the boiler from the end switch of the valve.

Technical data:

• Brand - Heatmiser
• Product Type - 8 Zone Wireless Wiring Centre
• Colour - White
• Depth - 60mm
• Height - 148mm
• Width - 384mm
• Number Of Heating Zones - 8
• Number Of Hot Water Zones - 1
• Voltage - 230V
• Frequency - 50Hz
• Relay Load Max - 3Amp
• Total Load Max - 5Amp
• IP Rating - IP20
• Weight - 1215g
