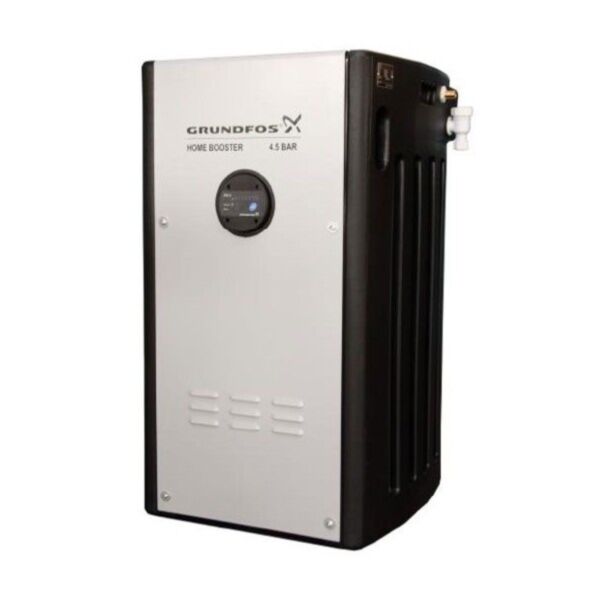

The Grundfos Home Booster unit is a self-contained cold water booster set, designed for domestic properties where the existing mains water supply is insufficient to meet the demand requirements of pressurised hot and cold water systems.

Features:

• The unit features an integral 200 litre storage tank with a Type AB air gap, in accordance with water bylaw regulations. The high quality stainless steel pump delivers high efficiency, sustained performance, long working life and quiet operation. The pump is controlled by the PM2 Pressure Manager controller, the latest controller from Grundfos.
• Installation is straight forward requiring the connection of mains cold water supply, discharge pipe, overflow pipe and electrical connections.
• The Home Booster is suitable for most domestic properties with one or two standard bathrooms with standard fittings, or en-suite, and cloakroom, plus other normal household appliances.
• For properties with 4 to 5 occupants, or where the storage tank refills very slowly due to poor mains water pressure, an additional 180 litres water storage slave tank option is available to increase the storage capacity is recommended.
• Integrated 200 litre storage tank (180 litres usuable volume).
• Nominal performance 4.5 bar.
• Compact and cost-effective solution.
• High quality stainless steel pump.

Technical data:

• Brand - Grundfos
• Product Type - Domestic Water Pressure Pump
• Material - Stainless Steel
• Depth - 600mm
• Height - 1000mm
• Width - 600mm
• Weight - 65kg
• Voltage - 240V
• Wattage - 870W
• Amperage - 4.0Amp
