GROHE Rapid SL WC Frame With Small Flush Plate, Cistern & Fixings 1130mm
GROHE Rapid SL WC Frame With Small Flush Plate, Cistern & Fixings 1130mm
In stock
Product Code
109134509
A water-saving toilet flush, as quiet as a whisper. Features: Crafted from sleek and sturdy materials from top to bottom and fits in perfectly to any compatible modern or t...Read more
A water-saving toilet flush, as quiet as a whisper.
Features:
Crafted from sleek and sturdy materials from top to bottom and fits in perfectly to any compatible modern or traditional bathroom layout.

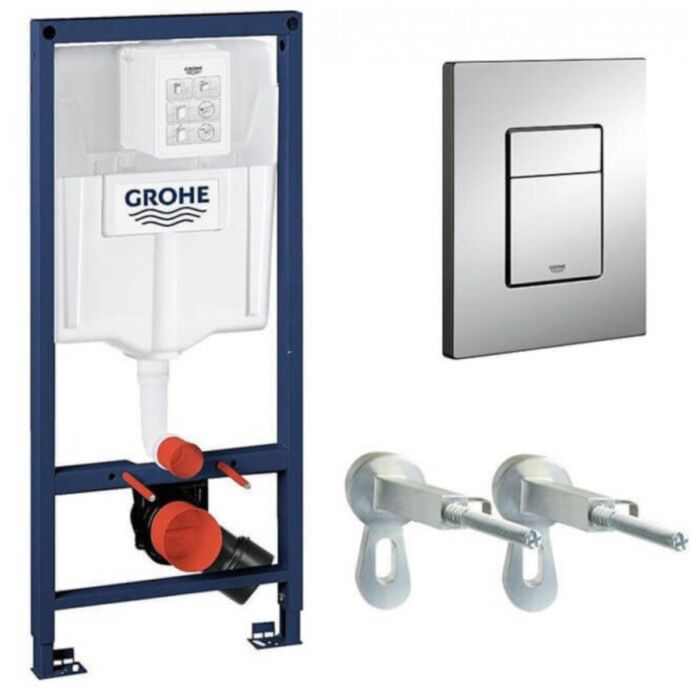

A truly impressive flusing cistern GD 2, 6 / 9ltr intallation pack that includes a Rapid SL element for WC, a Skate Cosmopolitan Small Flush Plate, Rapid SL Front Wall Brackets, and a revision shaft to aid the installation of small flush plates.
Nearly everything needed to set-up a compatible WC unit for use.
Designed for on-the-wall installations on studded walls, this product is depth adjustable and insulated against condensation of any kind.
5 Year warranty against any manufacturing defect.
Features for Rapid SL Element:
Flushing cistern GD 2, 6 to 9ltr, containing.
For on-the-wall installations or studded walls.
Powder coated steel frame, self-supporting.
TÜV approved.
2 WC fixing bolts.
Fixing device for ceramic.
WC ceramics with small bearing area (< 205mm) required.
Distance of fixing bolts 180 / 230mm.
Outlet bend diameter 90mm.
Depth adjustable.
Reducer diameter 90 / 110mm
Inlet and outlet connecting set.
Water supply from left, right or back.
Insulated against condensation.
½" water supply connection including integrated angle valve and push fit flexible hose union.
Features for Skate Cosmopolitan Small Flush Plate:
Made of using best quality of ABS.
Vertical installation.
For dual flush or start and stop actuation.
For pneumatic drop valve AV1.
Compatible with Rapid SL / GD2 1130mm.
Flush plate with magnetic holder and fixing brackets included.
GROHE EcoJoy® technology for less water and perfect flow.
Measures 130mm width and 172mm height.
Features for Rapid SL Front Wall Brackets:
For against-the-wall installations.
Adjustment from 130 to 230mm.
Comes with 2 rubber pipes.
Compatible for fixing the elements at the brick-wall or in front of the studded wall.
Features for Revision Shaft:
For combination with Rapid SL/GD 2 1130mm cisterns.
Technical data:
Brand - GROHE
Range - Rapid SL
Product Type - Toilet Frame With Small Flushplate, Cistern & Fixings
