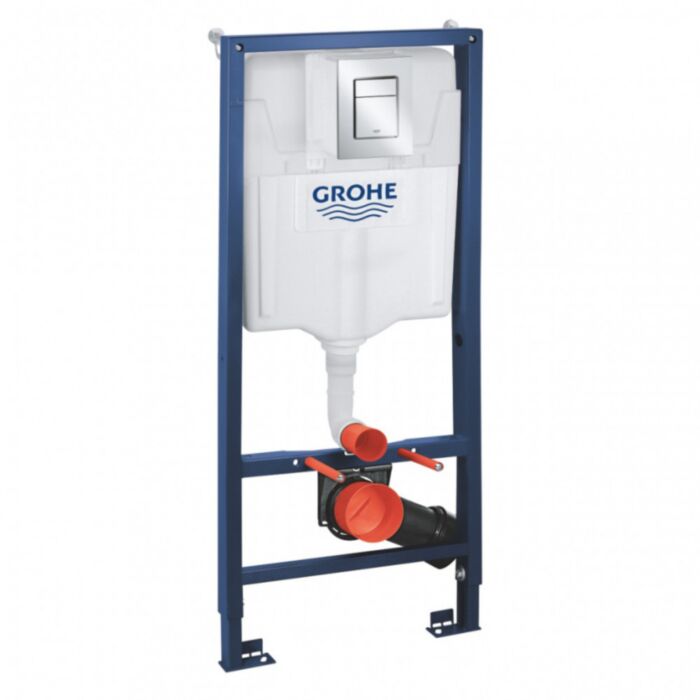

The Rapid SL 3 in 1 Set Support Frame for wall hung WC gives you the freedom to design your ultimate bathroom by providing a secure and quick method of installing WCs.

Features:

• Crafted from sleek and sturdy materials from top to bottom and fits in perfectly to any compatible modern or traditional bathroom layout.
• A truly impressive flusing cistern GD 2, 6 / 9ltr intallation pack that includes a Rapid SL element for WC, a Skate Cosmopolitan Flush Plate, Rapid SL Front Wall Brackets.
• Nearly everything needed to set-up a compatible WC unit for use.
• Designed for on-the-wall installations on studded walls, this product is depth adjustable and insulated against condensation of any kind.
• 5 Year warranty against any manufacturing defect.

Features for Rapid SL Element For WC:

• Flushing cistern GD 2, 6 to 9ltr, containing.
• For on-the-wall installations or studded walls.
• Powder coated steel frame, self-supporting.
• TÜV approved.
• 2 WC fixing bolts.
• Fixing device for ceramic.
• WC ceramics with small bearing area (< 205mm) required.
• Distance of fixing bolts 180 / 230mm.
• Outlet bend diameter 90mm.
• Depth adjustable.
• Reducer diameter 90 / 110mm
• Inlet and outlet connecting set.
• Water supply from left, right or back.
• Insulated against condensation.
• ½" water supply connection including integrated angle valve and push fit flexible hose union.

Features for Skate Cosmopolitan Flush Plate:

• Made of using best quality of ABS.
• Vertical installation.
• For dual flush or start and stop actuation.
• For pneumatic drop valve AV1.
• Compatible with Rapid SL / GD2 1130mm.
• Flush plate with magnetic holder and fixing brackets included.
• GROHE EcoJoy® technology for less water and perfect flow.
• Measures 156mm width and 197mm height.

Features for Rapid SL Front Wall Brackets:

• For against-the-wall installations.
• Adjustment from 130 to 230mm.
• Comes with 2 rubber pipes.
• Compatible for fixing the elements at the brick-wall or in front of the studded wall.

Technical data:

• Brand - GROHE
• Range - Rapid SL
• Product Type - Toilet Frame With Flushplate, Cistern & Fixings
• Mount Type - Wall Mount
• Frame Width - 500mm
• Frame Height - 1130mm
• Flush Plate Width - 156mm
• Flush Plate Height - 197mm
• Guarantee - 5 Years

Kit consists of:

• Rapid SL Element For WC
• Skate Cosmopolitan Flush Plate
• Rapid SL Front Wall Brackets
