The Energy Combi Boiler is an ErP A rated boiler that is small enough to fit perfectly in a kitchen cupboard, has an attractive modern design, and bright easy-to-use interface and a choice of controls. It comes in a Restart Pack including a Power System Filter and a Standard Horizontal Flue.

Features for Combi Boiler:

• Built in UK at Glow·worm’s award winning factory in Belper.
• It uses an aluminium heat exchanger which is designed to last longer and reduce your energy bills.
• "Quiet Mark" approved, the heat exchanger is super quiet.
• The compact size and rear flue option gives it great flexibility to install it in more spaces, including kitchen cupboards.
• Has a highly efficient, modulating, Grundfos pump which lowers your running costs as it skilfully adapts to the actual heating and hot water demand in your home.
• ErP A rated combi boiler.
• 7 year manufacturer guarantee out of the box, extendable to 10 years when registered on Club Energy7.

Features for the Power System Filter:

• Horizontal siting provides a more discreet, space-saving fit.
• Compact design allows more flexible, less intrusive siting options.
• Composite front section removes unnecessary weight.
• Easy disassembly makes servicing faster.
• Hard wearing stainless steel mesh that collects nonmagnetic debris and blocks sludge from entering the boiler.
• The unique design incorporates a sealing ring that allows the head to rotate without leaking, so the drain point can also be used as a dosing point.
• 500ml volume to assist with dosing.

Features for Standard Horizontal Flue:

• Measures 755mm from the centre of the 90° bend to the start of the terminal.
• Allows the safe disposal of gases created during the combustion process.
• Protects the system from disposed acidic gases.
• Quick And Easy To Install.
• All fixings are included.

Technical data for Combi Boiler:

• Brand - Glow·worm
• Range - Energy
• Product Type - Combi Boiler With Power Filter & Horizontal Flue Restart Pack
• Heat Exchanger Material - Aluminium
• Colour - White
• Article No. - 0010035896
• Signature Model Output - 25kW
• Depth- 280mm
• Width - 390mm
• Height -700mm
• Weight - 32kg
• ErP Rating - Water A / Heat A
• Gas Council No. - 47-019-60
• NOx (EN 15502-2-1) - 39mg/kWh
• ErP Efficiency - 94%
• ErP Decibel Rating (Sound Power) - 49dBa
• PCDB annual efficiency (SAP 2009/2012) - 89.6%
• Hot Water Flow Rate - 10.4ltr/min
• Maximum Horizontal Flue Length 10/10 - 10mtr
• Rear Flue Options - Yes

Technical data for Power System Filter:

• Body Material - Brass
• Valve Diameter - 22mm
• Overall Length - 194mm
• Maximum Operating Pressure - 3Bar

Technical data for Standard Horizontal Flue:

• Article No. - 0010031041
• Colour - White
• Diameter - 100mm
• Max. Flue Length - 10mtr
• Wall Thickness - Min. 75mm / Max. 645mm

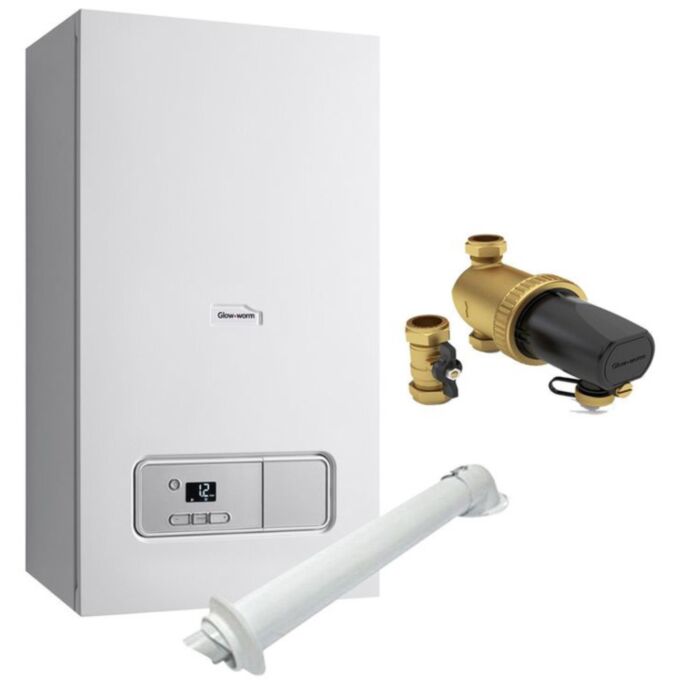

Kit consists of:

• Energy Combi Boiler.
• Power system Filter with isolation valve and installation and operation manual.
• Standard horizontal flue with fittings and installation manual.

Standards & Certifications:

• Quiet Mark approved which means it is an ultra-quiet boiler
