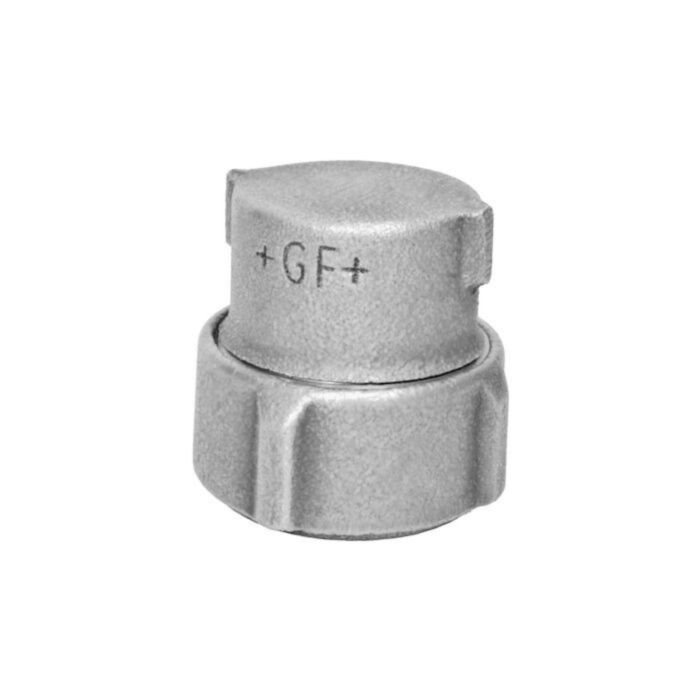

Georg Fischer PRIMOFIT is a compression fitting made out of malleable cast iron, with hot dip galvanised finish. The small and compact fitting has a design of fitting bodie and nut which allows ...Read more
DISCLAIMER
This product qualifies for next working day delivery provided it is in stock and your order is placed by 1pm Monday to Thursday. For full T&C's read our Delivery Information.
Georg Fischer PRIMOFIT is a compression fitting made out of malleable cast iron, with hot dip galvanised finish. The small and compact fitting has a design of fitting bodie and nut which allows the use of shrink sleeves.
Features:
For ISO 65 steel pipe.
Small and compact fitting, specially designed to slide easily over pipes with no extra equipment required.
Minimum pipe preparation, quick assembly and low cost.
Pre-assembled, dismantling is not required, meaning no special tools are necessary.
Offers full end load capability.
It allows a misalignment of the connected pipes up to 3Degree per compression joint.
Resistance against fire impact from outside, 650°C according German DVGW and 850°C according to British Gas test procedures.
Technical data:
Brand - GF
Range - PRIMOFIT
Product Type - End Cap NBR
Material - Malleable Cast Iron
Finish - Galvanised
Diameter - 1"
Weight - 0.296kg
Diagram Dimesions:
D - 59mm
L - 53mm
X - 30 to 34mm
Standards & Certifications:
Compression fitting according to prEN 10344 for connection of galvanised steel pipes according to EN 10255 and EN 10220 with measurements according to ISO 65
Made out of white heart malleable cast iron EN-GJMW-400-5 acc. to EN 1562, sealing materials as above.
Corrosion protection by hot dip galvanising according to prEN 10350
