It’s designed for use with floor-standing toilets and is intended for installation in drywall applications.

Features:

• Immediate post flush possible with factory setting.
• Flush valve features settings to enable either a 6 l and 3 l flush, 4.5 l and 3 l flush or a 4 l and 2.6 l flush.
• Note: must be used with pans designed for low volume flush. Flush bend fitted.
• Water supply connection on the rear or top centre.
• Connection hose on angle stop valve can be attached without tools.

Applications:

• For drywall construction.
• For installation in part or room-height prewall installations.
• For installation in room-height installation walls.
• For floor-standing WC’s.

Technical data:

• Brand - Geberit

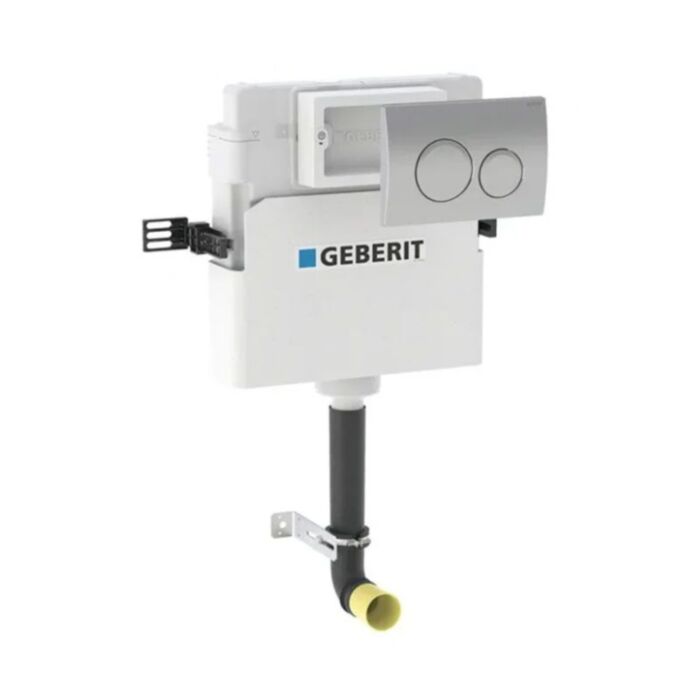

• Product Type - Delta Concealed Cistern With Delta 20 Flush Plate
• Depth - 12mm
• Width - 410mm
• Height - 445mm
• Pressure - 0.1-10Bar Maximum Operating Temperature - 25°C
• Flush Volume, Factory Setting - 5.8ltr To 3ltr
• Flush Volume Small, Adjustment Range - 2ltr To 4ltr
• Plate Colour - Gloss Chrome

Supplied with:

• Angle Stop Valve R 1/2", Compatible With MF, With Adapter Ring.
• Geberit Delta20 Flush Plate For Dual Flush.
• 2 Distance Bolts.
• Fastening For Flush Bend
• Flush Bend Extension, Ø 45 mm.
• 2 Fixing Brackets
