An all in one Gas Meter with everything you need to install it.

Features:

• Gas meter included.
• Meter reads in cubic metres. Inlet and outlet connections are 152.4 mm apart (as historically on British Gas domestic installations).

Technical data:

Technical Data for G4 Diaphragm Gas Meter:

• Product Type - Domestic Gas Meter
• Material - Steel
• Depth - 165mm
• Height - 250mm
• Width - 235mm
• Wattage - 60KW

Technical Data for Domestic Angle Meter Regulator:

• Product Type - Regulator for domestic meter applications.
• Material - Steel
• Outlet Pressure - 12Bar to 25Bar

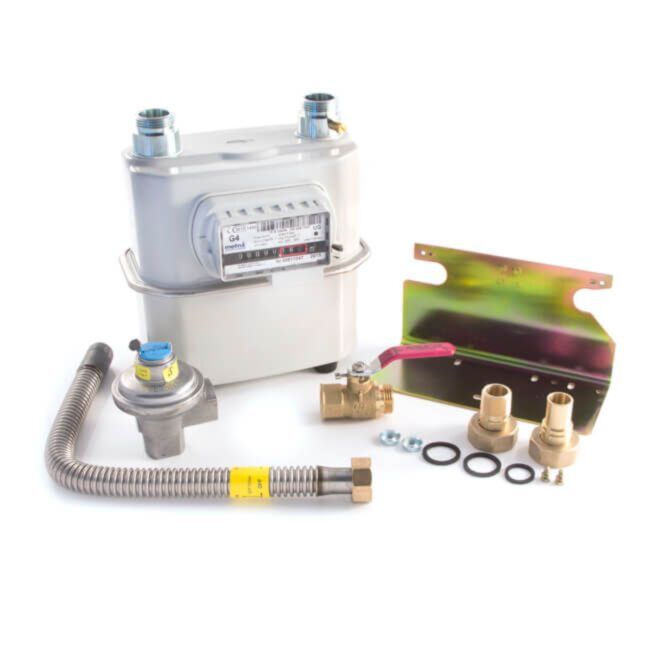

Pack consists of:

• 1 x G4 meter (made in EU)
• 1 x Meter bracket
• 2 x Security washers
• 2 x Shear bolt
• 1 x Meter union 1" x 3/4"
• 1 x Meter union for 22mm copper outlet
• 2 x Meter washer
• 1 x Governor/Regulator
• 1 x Meter connector
• 1 x Washer for meter connector
• 1 x Meter control valve 3/4"

Please Note:

• For use with Natural Gas only.
• If a meter box is needed, please order separately.
