An electrical protection device commonly used in distribution boards or consumer units that enhances electrical safety by quickly disconnecting the circuit in case of ground faults or overloads, thus preventing electrical hazards and equipment damage.
Features:
Residual Current Circuit Breaker with Overcurrent protection with the functionality of detecting ground faults (residual currents) and offering overcurrent protection.
Type A provides protection against both AC and pulsating DC residual currents, making it suitable for a wide range of electrical systems.
Single Pole, designed for single-phase circuits.
B Curve, tripping characteristics in response to moderate overcurrent.
Technical data:
Brand - Fusebox

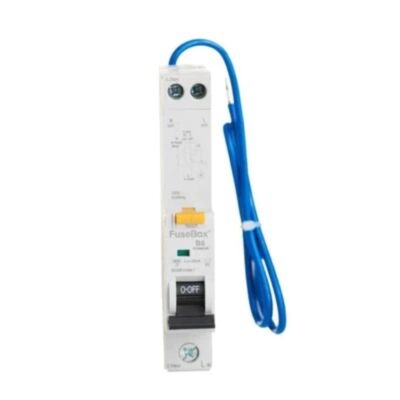

Product Type - Type A RCBO Single Pole B Curve
Material - PA6 (Nylon 6)
Number Of Poles - 1P + N
Voltage - (Un/AC) 230V
Frequency - 50/60Hz
Weight - 0.2kg
Rated Breaking Capacity (Icn) - 6000A (6kA)
Amperage - 6Amp
Tripping Characteristics - B Curve: 3-5In
Residual Current Characteristics - Type A (AC And Pulsating DC Up To 6mA)
Rated Residual Operating Current (II λnn) - 0.03
Mechanical Endurance - 10000
IP Rating - IP20
Maximum Terminal Capacity - 1 To 16mm ² L IN / 1 To 10mm ² OUT N L
Recommended Tightening Torque - 2.5Nm L IN / 1.2Nm OUT N L
If no Data and Safety sheets are visible here please send an email request to [email protected]
