An electrical protection device commonly used in distribution boards or consumer units that enhances electrical safety by quickly disconnecting the circuit in case of ground faults or overloads, thus preventing electrical hazards and equipment damage.

Features:

• Residual Current Circuit Breaker with Overcurrent protection with the functionality of detecting ground faults (residual currents) and offering overcurrent protection.
• Type A provides protection against both AC and pulsating DC residual currents, making it suitable for a wide range of electrical systems.
• Single Pole, designed for single-phase circuits.
• B Curve, tripping characteristics in response to moderate overcurrent.

Technical data:

• Brand - Fusebox

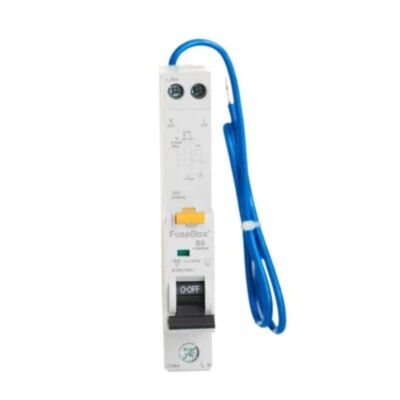

• Product Type - Type A RCBO Single Pole B Curve
• Material - PA6 (Nylon 6)
• Number Of Poles - 1P + N
• Voltage - (Un/AC) 230V
• Frequency - 50/60Hz
• Weight - 0.2kg
• Rated Breaking Capacity (Icn) - 6000A (6kA)
• Amperage - 40Amp
• Tripping Characteristics - B Curve: 3-5In
• Residual Current Characteristics - Type A (AC And Pulsating DC Up To 6mA)
• Rated Residual Operating Current (II λnn) - 0.03
• Mechanical Endurance - 10000
• IP Rating - IP20
• Maximum Terminal Capacity - 1 To 16mm ² L IN / 1 To 10mm ² OUT N L
• Recommended Tightening Torque - 2.5Nm L IN / 1.2Nm OUT N L
• Flying Neutral Cable Length - 450mm
• Mounting - 35mm DIN RAIL

Standards & Certifications:

• Complies to Standard - IEC/EN 61009-1
