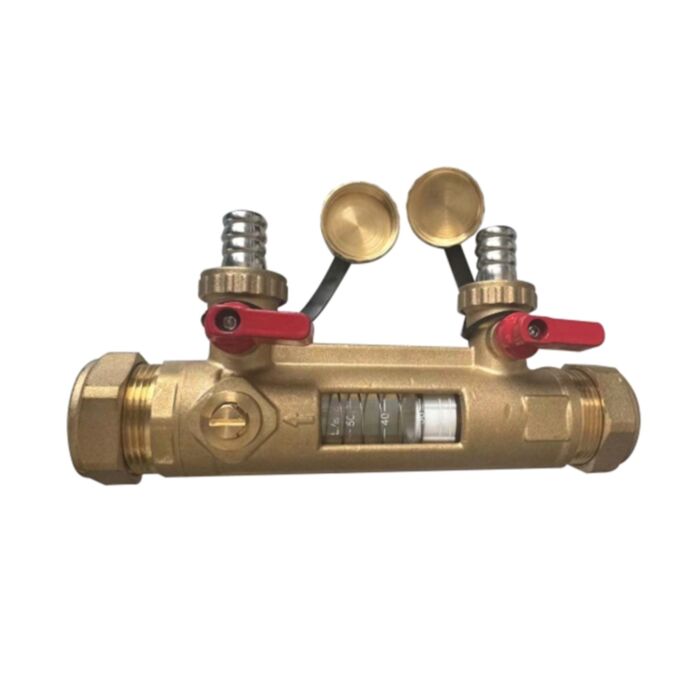

The Flow Balancing Valve Including Fill & Flush 28mm is expertly crafted to optimise liquid flow in heating systems, enhancing efficiency and performance. With an integral ball valve and 28mm compression connections, it ensures easy installation. The clear window allows for precise flow adjustments, maximising heat collection and prolonging system life.

Features & Benefits:

• Regulates liquid flow in heating systems for optimal performance.
• Maximizes heat collection in cylinders, improving energy efficiency.
• Prevents the heat pump from overworking, extending system longevity.
• Reduces operational costs by enhancing system efficiency.
• Integral ball valve allows for reliable flow management.
• 28mm compression connections simplify installation and ensure a secure fit.
• Clear window provides visibility for easy flow rate adjustments.
• Handles a maximum pressure of 10Bar for robust performance.
• Compatible with water and water-glycol mix up to 50% for flexibility.
• G ¾” BSP fill and flush connection facilitates easy maintenance.
• Operates effectively at temperatures up to 110°C and as low as -20°C.

Applications:

• Used in heating systems to regulate liquid flow.
• Enhances efficiency by maximizing heat collection in cylinders.
• Improves system longevity by preventing heat pumps from overworking.
• Facilitates easy flow management with the integral ball valve.

Technical Data:

• Product Type - Flow Balancing Valve
• Diameter - 28mm
• Connection Type -Compression
• Integral Feature - Ball valve for easy flow regulation
• Maximum Operating Temperature - 110°C
• Minimum Operating Temperature - -20°C
• Maximum Pressure - 10Bar (Static)
• Fluid Compatibility - Suitable for water & water-glycol mix (up to 50%)
• Fill & Flush Connection - G ¾” BSP

Enhance your heating system’s performance with the Flow Balancing Valve Including Fill & Flush 28mm, built for precision, durability, and energy efficiency. Buy now to enjoy effortless installation, accurate flow control, and long-lasting protection for your system!
