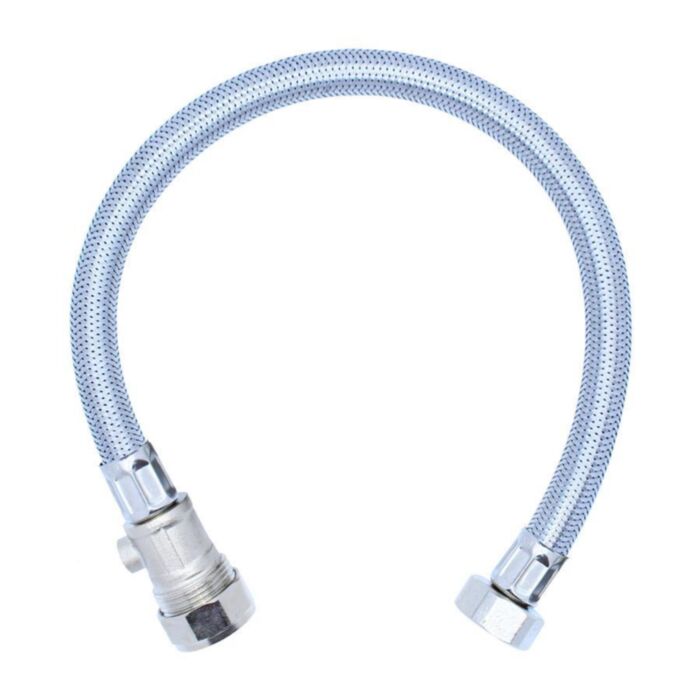

Flexible Braided Tap Connector To Compression With Isolating Valve ¾" x 22x500mm

main product photo

Flexible Braided Tap Connector To Compression With Isolating Valve ¾" x 22x500mm

In stock
Product Code
109111164
A 500mm long stainless steel braided flexible hose with a 22mm isolator compression fitting at one end and a ¾" female bsp thread at the other end. Features: Suitable for ...Read more
Your Price
£10.54 £8.78

Click & Collect Delivery
Add to Project List

Select branch to check stock

Select postcode to see availability

A 500mm long stainless steel braided flexible hose with a 22mm isolator compression fitting at one end and a ¾" female bsp thread at the other end.

Features:

  • Suitable for most kitchen and bathroom taps.
  • Easy fix for difficult pipe work.
  • The compression fitting has a built in stop for receiving a tube, a compression olive of the same size and a compression nut.
  • Easy to install with no soldering or heat required.
  • Can be dismantled and rebuilt, works well at high pressure providing a watertight seal.
  • The isolation valve can be shut to stop the flow of water when maintenance needs to take place on the system.

Technical data:

  • Material - Stainless Steel
  • Length - 500mm
  • Bore Diameter - 13mm
  • Hose Diameter - 17mm
  • Working Pressure - 10Bar
  • Working Temperature - -5°C To 90°C
  • Compression end conforms to - EN1254-2

  • Manufacturer Code
    SSH6/A
  • Delivery Only
    No
  • Brand
    Unspecified
  • Material
    Stainless Steel
  • Bore Diameter
    13mm
  • Diameter
    ¾" x 22mm
  • Length
    500mm
Check for Delivery

Returns

This product can be returned if returned unopened, unused and in a fully resalable condition, including the original packaging.
