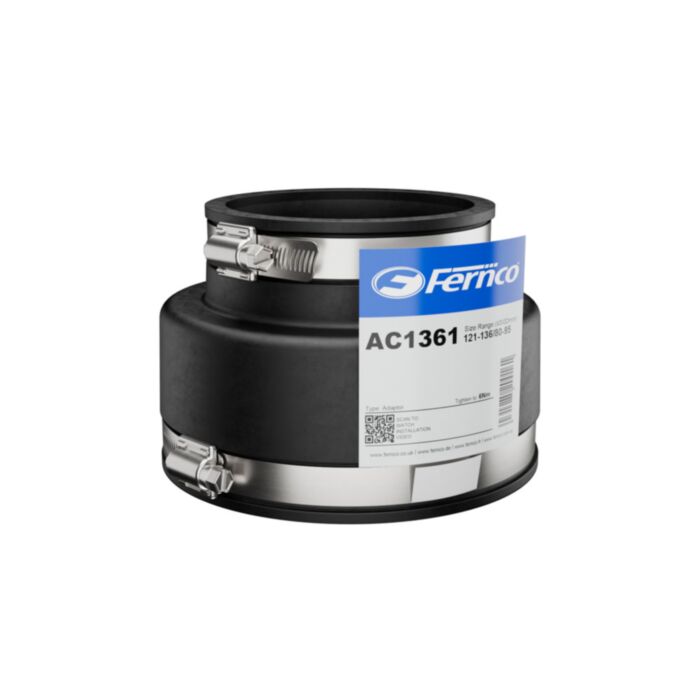

Rubber fitting manufactured by Fernco, previously known as Flexseal. Fernco fittings are plumbers’ reliable problem solver. The flexible nature of these fittings allows the user to connect and repair, what would be in normal circumstances, incompatible pipe systems. The range of flexible diameter plumbing couplings are easy installers; simply slide the coupling over the ends of the pipes to be connected and tighten the clamps using a nut driver or flat head screwdriver. This method also allows users to disconnect and reconnect as many times as required.

Features & Benefits:

• Flexible adaptor, sometimes referred to as reducer coupling, that helps connect different pipe sizes smoothly.
• Made from EPDM (ethylene propylene diene monomer) and two high performance stainless steel clamp bands.
• Quick and easy to install.
• Provides a reliable flexible seal which is watertight and airtight.
• Universal, can be used on any pipe material.
• Ideal for connecting incompatible pipe systems and adjust to various diameters.
• Easy transition between metric and inch measurements.
• Reduces vibrations in pipes.
• Free from harmful vapours since no glue or solvents are needed.
• Can be installed even in cold or frosty conditions.
• Allows quick and easy emergency repairs.
• Works well with connections that may not seal perfectly.
• Resists UV rays, root growth, sewer gases, bacteria, and various chemicals.

Applications:

• Designed for water and drainage applications because of their durability and resistance to environmental factors like UV, ozone, and temperature variations.
• Perfect in industrial applications where access may be restricted after completion of first fix.
• Compatible with any pipe system: plastic, iron, clay, etc.
• Particularly useful for materials that cannot, or cannot easily, be glued, such as stainless steel, PP, PE, concrete and polyester.

Technical data:

• Brand - Fernco
• Product Type - Adaptor
• Material - EPDM
• Clamp Material - Stainless Steel
• Colour - Black
• Pressure Rating - 0.6Bar, 8.70psi
• Jetting Resistance - 180Bar
• Temperature Range - -50°C To 80°C Constant / 100°C Intermittent
• Tightening Torque - 6Nm
• Diameter - Adjustable 121-136mm To 80-95mm
• Connection Type - Adjustable Clamp

Standards & Certifications:

• Complies with BS EN 681-1:1996
• Manufacturer meets the requirements of BS EN ISO 9001:2015,
• Fernco operate Environmental Management Systems which are certified to ISO 14001: 2015
• Meets BS EN 295-4:2013
• Meets BS EN 10088-2:1995
