EPH Non Programmable Digital Room Cylinder Thermostat IP20 8Amp

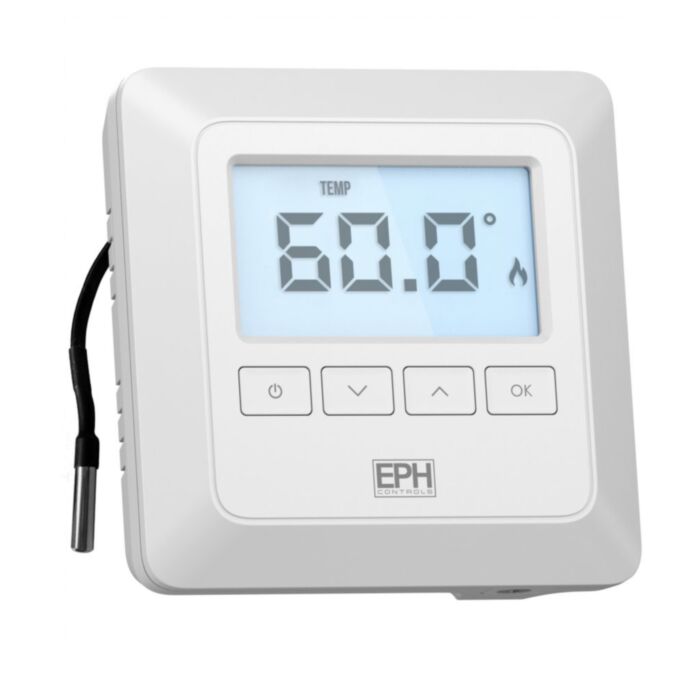

This CDC2 thermostat is a mains-operated, non-programmable thermostat with the capability of controlling either the heating or hot water systems.

Features:

• The CDC2 is a non-programmable thermostat.
• Simply set the desired temperature and the thermostat will maintain it for you.
• The CDC2 has an accuracy of ±1°C, ensuring that your room or cylinder is always at the temperature you want.
• The CDC2 has a clear backlit display that is easy to read in any light condition.
• The CDC2 has a frost protection setting that will prevent your pipes from freezing in cold weather.

Technical data:

• Brand - EPH
• Product Type - Non Programmable Digital Room Cylinder Thermostat
• Depth - 26mm
• Height - 91mm
• Width - 91mm
• Wattage - 1.5W
• Voltage - 230V
• Ambient Temp. Range - 0°C To 45°C
• Frost Protection - 5°C
• IP Rating - IP20
• Admissible Ambient Humidity - 5-59% RH
• Amperage - 8Amp
• Temp. Range - 10°C To 90°C
• External Sensor Length - 2000mm

Standards & Certifications:

• UK Conformity Assessed.
• EN 60730-1 EN 60730-2-8

Please Note:

• Installation and connection should only be carried out by a qualified person and on accordance with national wiring regulations.
