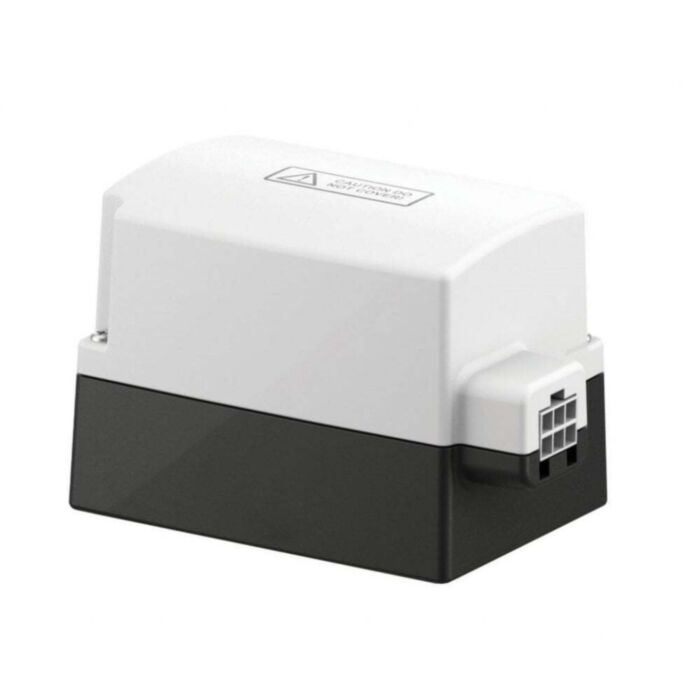

EPH D1PF 3 Port Motorised Valve Actuator With Detachable Cable
EPH D1PF 3 Port Motorised Valve Actuator With Detachable Cable
EPH D1PF 3 Port Motorised Valve Actuator With Detachable Cable
In stock
Product Code
109136523
The perfect solution for replacing a Honeywell Three Port Actuator with its detachable cable, it allows for easy installation and replacement. Features: The D1PF range of a...Read more
DISCLAIMER
This product qualifies for next working day delivery provided it is in stock and your order is placed by 1pm Monday to Thursday. For full T&C's read our Delivery Information.
The perfect solution for replacing a Honeywell Three Port Actuator with its detachable cable, it allows for easy installation and replacement.
Features:
The D1PF range of actuators c/w auxiliary switches are specifically designed for use in domestic applications only.
They are not designed for use in commercial or industrial applications such as schools, nursing homes, or hotels where large commercial pump sets are fitted.
Technical data:
Brand - EPH
Product Type - 3 Port Motorised Valve Replacement Actuator
Width - 68mm
Height - 70mm
Length - 93mm
Voltage - 230V
Impulse Voltage - 2500V
Wattage - 5W
Max. Operating Temperature - 50°C
IP Rating - IP20
Supplied with:
1.2 metre cable
Replacement for:
Manufacturer - EPH, Model - B322P(F), Size & Type - 22mm Compression, Max. Close Off Pressure - 1.0Bar
Manufacturer - EPH, Model - B328P(F), Size & Type - 28mm Compression, Max. Close Off Pressure - 0.6Bar
Manufacturer - Honeywell, Model - V4073A, Size & Type - 22mm Compression, Max. Close Off Pressure - 1.0Bar
Manufacturer - Honeywell, Model - V4044C, Size & Type - 28mm Compression, Max. Close Off Pressure - 0.6Bar
Manufacturer - Honeywell, Model - Z322, Size & Type - 22mm Compression, Max. Close Off Pressure - 1.0Bar
Manufacturer - Honeywell, Model - Z328, Size & Type - 28mm Compression, Max. Close Off Pressure - 0.6Bar
Standards & Certifications:
This control is designed Type 1.AA. C in accordance with EN60730.
Please Note:
Under no circumstances should the actuactor be insulated or covered by any other material.
