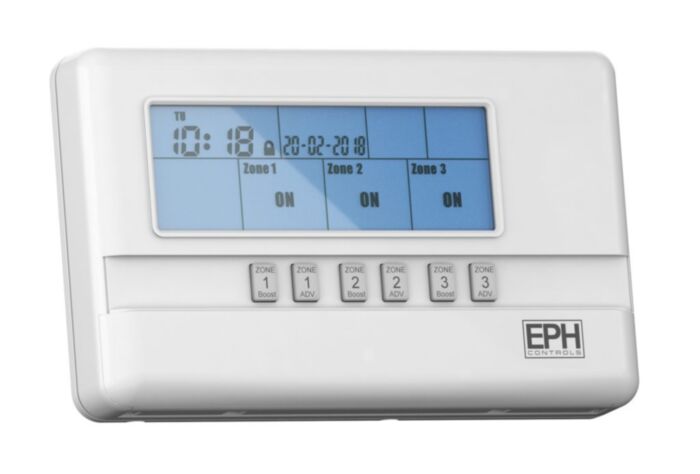

Programmer for 3 zones that operates in three modes: 24 hours, 5 days, and 7 days. Central heating systems with three zones can be controlled with this device.

Features:

• The programmer can control up to three separate heating zones.
• The programmer can be programmed for up to seven days in advance.
• The programmer has a manual override function, so you can always override the programmed schedule if you need to.
• The programmer has a simple and easy-to-use interface.
• The programmer has a battery backup, so your settings will be saved even if there is a power cut.

Technical data:

• Brand - EPH
• Product Type - 3 Zone Heating Programmer
• Depth - 34.2mm
• Height - 100mm
• Width - 161mm
• Number of Zones - 3
• Operating Modes - 24h / 5/2d / 7d
• Voltage - 230V
• Ambient Temp Range - 0 To 50°C
• Screen Height - 35mm
• Screen Width - 100mm
• IP Rating - IP20
• Amperage - 3Amp
• Weight - 0.5kg

Standards & Certifications:

• UK Conformity Assessed.

Please Note:

• Installation and connection should only be carried out by a qualified person and on accordance with national wiring regulations.
