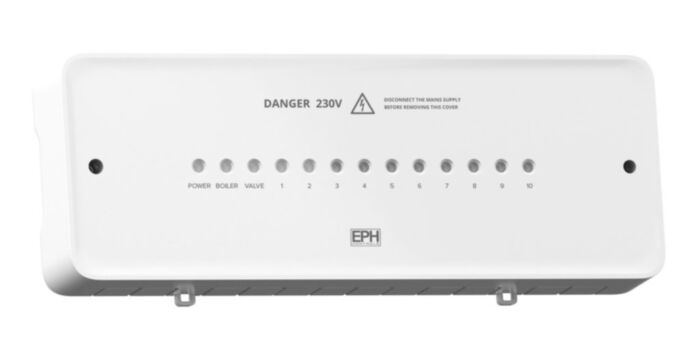

The EPH UFH10 is an underfloor heating logic strip. It has a 10 zone capacity with 4 time inputs.

Features:

• The wiring centre can accommodate up to 10 heating zones.
• The wiring centre has a 230V pump output.
• The wiring centre also has a volt-free boiler output.
• The wiring centre has a UFH valve output.
• The wiring centre has a 5Amp switch rating.

Technical data:

• Brand - EPH
• Product Type - 10 Zone Heating Wiring Centre
• Voltage - 230V / 50/60Hz
• Depth - 50mm
• Height - 165mm
• Width - 380mm
• IP Rating - IP20
• Ambient Temperature - 0°C To 45°C
• Switch Rating - 5Amp
• Max. No. of Actuators Per Zone - 4

Standards & Certifications:

• UK Conformity Assessed.

Please Note:

• Installation and connection should only be carried out by a qualified person and on accordance with national wiring regulations.
