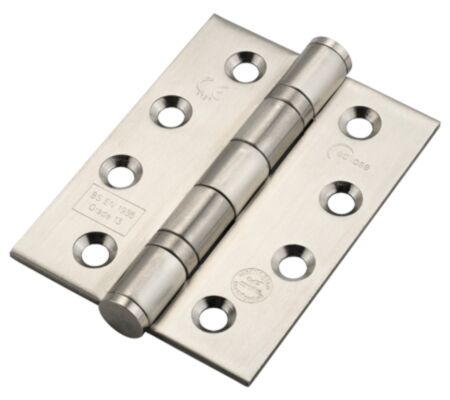

Ball bearing hinges are supplied ready lubricated by the manufacturer to ensure smooth operation of hinge leaves when fitted to doors. Fire rated hinges are tested and certified to EN1634 FD 30, FD 60 timber Doorsets and FD 240 Steel Doorsets.

Features:

• CE Mark Grade 13 Certifier tested.
• Fire Rated to 30 & 60mins.
• WeldCap Secure Fix System.
• Stainless steel Construction.
• 120kg Max. Door Weight.
• Suitable for industrial, commercial and domestic use.

Technical data:

• Brand - Eclipse
• Product Type - Ball Bearing Hinge
• Material - Stainless Steel
• Colour - Stainless Steel
• Finish - Satin
• Thickness - 3mm
• Height - 102mm
• Width - 72mm
• Fire Rating - 13 BS EN 1936
• Duty - Severe
• Test cycles - 200000
• Corrosion resistance - Very high resistance
• CE grade - 13
• Quantity in Pack - 2pk

Standards & Certifications:

• BS EN 1634-1:2000 Fire Tested.
• FD60 Timber.
• FD240 Steel.
• BS EN 1935:2002 Performance Tested.
• Certifier CF336.

Supplied with:

• Pozi drive screws fixings.

Please Note:

• It is advised that the product is lubricated at 25,000 cycle intervals to maintain optimum efficiency of the hinge.
• Simple monthly cleaning programme will be sufficient for all low usage areas such as cupboard doors and a fortnightly program is advised for high usage areas such as toilets.
