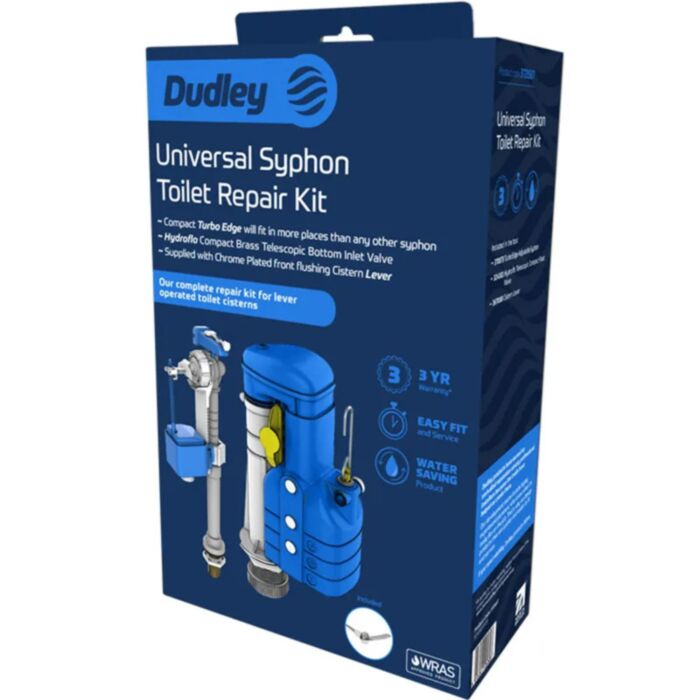

Dudley Universal Syphon Repair Kit

Universal Syphon Toilet Repair Kit; the complete repair kit for lever operated toilet cisterns.

Features for the Hydroflo telescopic inlet valve with compact float and brass tail:

• Designed for use as a replacement in most plastic and ceramic exposed and concealed cisterns.
• Complies fully with water regulations, True AG Air Gap, No under water joints, No silence tube.
• Delay fill saves water and supports BREEAM by only allowing a cistern to start refilling once flushing is complete.
• Telescopic height adjustment - 203mm (8") to 292mm (11½").
• Professional ½" BSP brass tail.
• Compact body and float assembly.
• Key supplied for simple and safe removal of the filter.
• Unique float arm makes it impossible for the float to become detached.

Features for the Turbo Edge Adjustable Duoflush Syphon:

• Our best ever syphon fits in all syphon flush ceramic and plastic WC cisterns.
• Available as a replacement for all Dudley one piece and two piece syphons.
• Dudley Duoflush delivers water saving reduced flush when lever is held down and full flush when lever is depressed and released.
• 6/7/9 litre volume adjustment guaranteeing optimum flush performance.
• The world’s most compact syphon - Fits all syphon flush ceramic and plastic WC cisterns.
• Height adjustable from 7½" (191mm) to 9½" (241mm).
• Retrofits onto all existing Dudley downlegs; Turbo 88 Adjustable and Fixed Height, S44R and S1-11 syphon downlegs.
• The best performing syphon that fits all cisterns.
• User-friendly light-touch operation.
• Fully captive yellow fixing pin does not need to be removed to install syphon, easing installation.
• Convertible to single flush.
• WRAS approved product.

Features for the E-Type Chrome Cistern Lever:

• New or replacement lever for domestic and commercial environments.
• Replaces any lever for easy operation.
• Standard 110mm spindle.
• Manufactured from high quality materials.
• Chrome plated finish to BS4525.
• Supplied with lift arm, nuts and washers.

Technical data:

• Brand - Dudley
• Product Type - Universal Syphon Repair Kit

Technical data for the Hydroflo telescopic inlet valve with compact float and brass tail:

• Telescopic Height Adjustment - 203mm (8") To 292mm (11½")
• Connection ½" BSP Brass Tail
• Adjustment - 65mm Float Height Range
• Valve Type - Diaphragm
• Float - Compact (Delay-Fill)
• Conformity - BS1212-4

Technical data for the Turbo Edge Adjustable Duoflush Syphon:

• Outlet - 1½" BSP (48mm)
• Flush Volume - 6/7/9 Litre Convertible
• Sizes - Adjustable From 191mm (7½") To 241mm (9½") In ½" Increments
• Cistern Type - Low Level

Technical data the E-Type Chrome Cistern Lever:

• Material - Zinc Alloy
• Finish - Chrome
• Spindle Length - 110mm
• Bush Size - ½" BSP

• Compact Turbo Edge adjustable syphon will fit in more places than any other cistern
• Hydroflo compact brass tailed telescopic bottom inlet valve
• Contains chrome plated front flushing cistern lever
