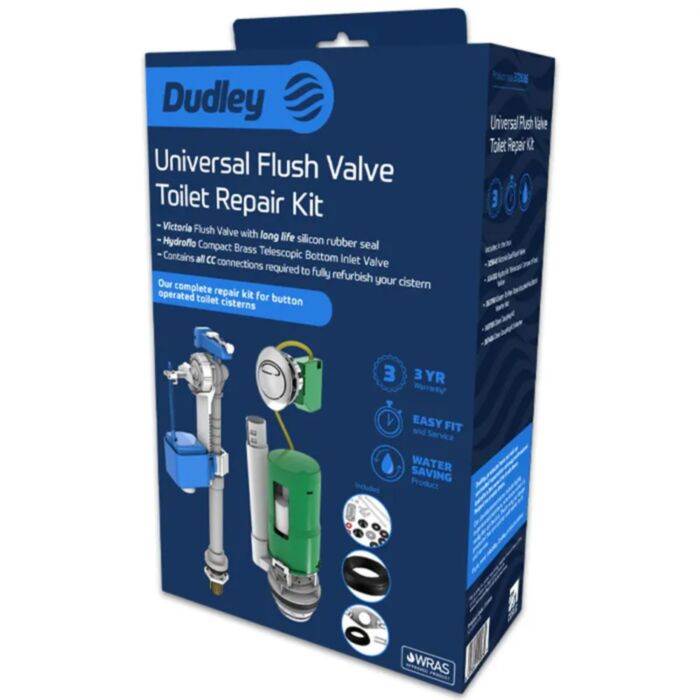

Dudley Universal Flush Valve Toilet Repair Kit

Universal Flush Valve Toilet Repair Kit; the complete repair kit for button operated toilet cisterns.

Features for the Hydroflo telescopic inlet valve with compact float and brass tail:

• Designed for use as a replacement in most plastic and ceramic exposed and concealed cisterns.
• Complies fully with water regulations, True AG Air Gap, No under water joints, No silence tube.
• Delay fill saves water and supports BREEAM by only allowing a cistern to start refilling once flushing is complete.
• Telescopic height adjustment - 203mm (8") to 292mm (11½").
• Professional ½" BSP brass tail.
• Compact body and float assembly.
• Key supplied for simple and safe removal of the filter.
• Unique float arm makes it impossible for the float to become detached.

Features for the Victoria flush valve with long life silicon rubber seal:

• Ideal for use as a replacement in concealed cable operated cisterns typically mounted behind panelling or within furniture units.
• Also compatible with exposed and close coupled cisterns.
• 6/4 litre dual flush.
• Suitable for 48mm (1½" BSP) and 60mm (2" BSP) outlets utilising supplied 2" adaptor.
• Chrome plated dual flush push button - Can replace a traditional flush lever in some furniture and close coupled installations.
• Bayonet fitting enables valve body to be quickly and easily removed from the cistern.
• Easy adjustment.
• WRAS approved.

Features for the Through-Bolt CC Kit for close-coupled toilet suites:

• New or replacement coupling kit for through-bolt fixed close-coupled toilet suites.
• Supplied with nuts, bolts & washers.
• M6 x 100mm cross head bolts.
• Rubber & fibre washers included to protect ceramics and ensure a water tight connection.
• Wing-nuts included for quick & easy installation.

Features for the 2" Plate CC Kit for close-coupled toilet suites:

• New or replacement coupling kit for plate fixed close coupled toilet suites.
• Supplied with nuts, bolts & washers.
• M8 x 40mm bolts.
• 2” doughnut washer included.
• Wing-nuts included for quick & easy installation.

Technical data:

• Brand - Dudley
• Product Type - Flush Valve Toilet Repair Kit

Technical data for the Hydroflo telescopic inlet valve with compact float and brass tail:

• Telescopic Height Adjustment - 203mm (8") To 292mm (11½")
• Connection ½" BSP Brass Tail
• Adjustment - 65mm Float Height Range
• Valve Type - Diaphragm
• Float - Compact (Delay-Fill)
• Conformity - BS1212-4

Technical data for the Victoria flush valve with long life silicon rubber seal:

• Outlet - 1½" BSP (48mm), 2" BSP (60mm)
• Flush Volume - 6/4 Litre Dual Flush
• Cable Length - 300mm (470mm Cable option available)
• Cistern Type - Low Level Exposed, Close Coupled, Concealed (Cable Operated)

Technical data for the Through-Bolt CC Kit for close-coupled toilet suites:

• Material Steel - Finish BZP
• Bolt Diameter - M6
• Bolt Length - 100mm
• Washer Type - BZP Steel, Rubber Cone, Rubber, Fibre

Technical data for the 2" Plate CC Kit for close-coupled toilet suites:

• Outlet Size - 2" BSP
• Material - Steel
• Finish - BZP
• Bolt Diameter - M6
• Bolt Length - 40mm
• Plate Type - Ridged
• Washer Type 2" Doughnut

Kit consist of:

• Victoria flush valve with long life silicon rubber seal
• Hydroflo compact brass tailed telescopic bottom inlet valve
• Contains all close-coupled fittings required to fully refurbish the cistern
