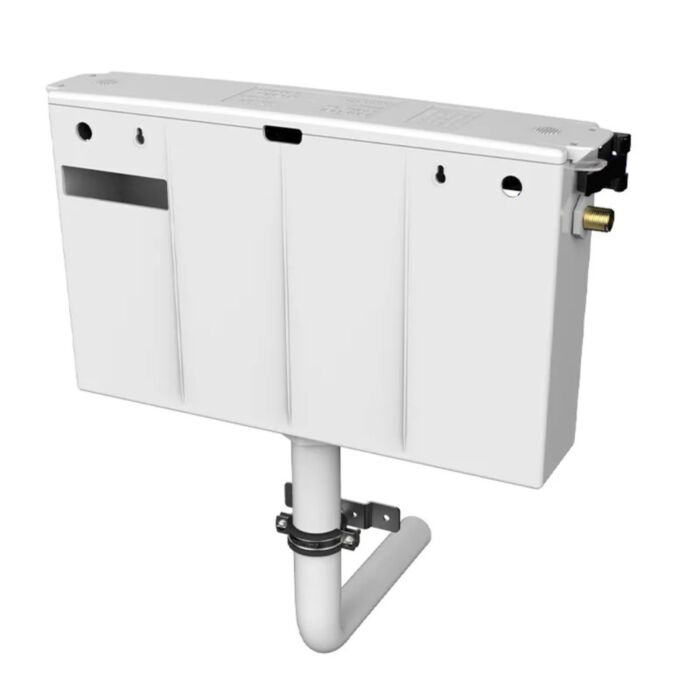

Dudley OSMO Top Access Concealed Reversible Cistern With AXIS Technology

Top access concealed reversible cistern with AXIS Technology creating multiple inlet and outlet options as standard for pod applications. Perfectly designed to be mounted on GRP, Timber and Steel framed pods.

Features:

• Excellent water saving from the factory set Dudley Niagara valve at 6/4 ltr. Outstanding water saving performance when setting the Dudley Niagara valve to 4/2.6ltr dual flush combined with the Hydroflo 7 second Delay Fill inlet valve.
• WRAS Approved Dudley Niagara pneumatic flush valve.
• WRAS Approved Dudley Victoria cable flush valve.
• WRAS Approved Dudley Hydroflo 7s Delay Fill Brass Tail Inlet Valve.
• Easy top access with reversible SnapLock lid.
• Factory Assembled.
• Pneumatic push button / plate can be installed up to 750mm away from cistern.
• Unique reversible cistern body due to AXIS Technology achieving multiple outlet and inlet options.
• Flush Pipe Stability System (FPSS) with SureLock Bracket.
• Fluid category 5 cistern; the only way to achieve a water regulations compliant cistern in standard height POD shelves.

Technical data:

• Brand - Dudley
• Range - OSMO
• Product Type - Top Access Concealed Reversible Cistern
• Depth - 110mm
• Height - 315.6mm
• Width - 550mm
• Operation - All TYDE Pushbuttons & Pushplates
• Inlet - Side Inlet
• Outlet - Niagara Pneumatic (centre outlet)
• Flush Pipe - 90 Tight Radius Push Fit Flush Pipe Min. 105mm Max. 386mm (125mm From Base of Cistern)
