Dudley Beta+ Telescopic Bottom Inlet Brass Tail Valve Part 3 Ball With Back Plate Adjustable & Swivel Arm

Dudley Beta+ Telescopic Bottom Inlet Brass Tail Valve Part 3 Ball With Back Plate Adjustable & Swivel Arm

Name: Dudley Beta+ Telescopic Bottom Inlet Brass Tail Valve Part 3 Ball With Back Plate Adjustable & Swivel Arm
Brand: Dudley
SKU: 109136703
Price: 12.06 GBP
Availability: InStock

Dudley Beta+ Telescopic Bottom Inlet Brass Tail Valve Part 3 Ball With Back Plate Adjustable & Swivel Arm

In stock

Product Code

109136703

Adjustable Telescopic Bottom Inlet Valve that fits virtually all float operated cisterns and offers the highest level of inlet valve adjustability. Features: Quick and easy...Read more

DISCLAIMER

This product qualifies for next working day delivery provided it is in stock and your order is placed by 1pm Monday to Thursday. For full T&C's read our Delivery Information.

Your Price

£12.06 £10.05

Out of stock

Product Information

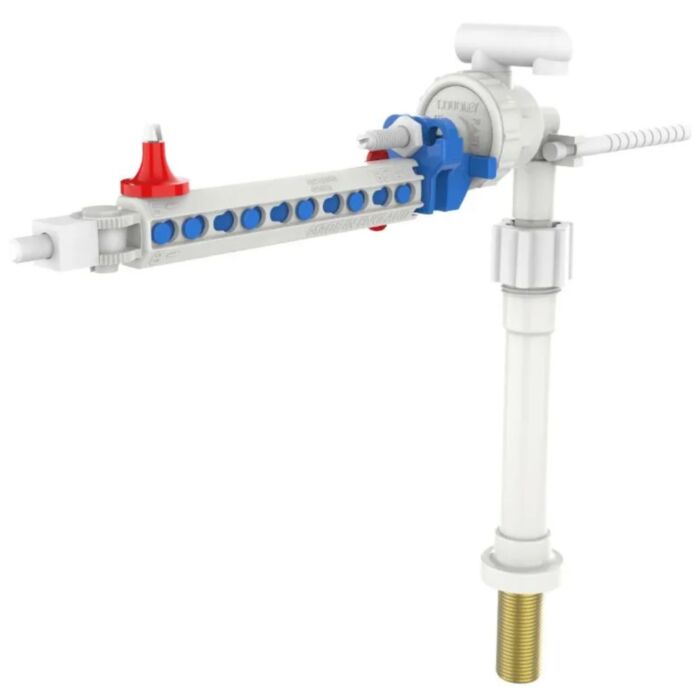

Adjustable Telescopic Bottom Inlet Valve that fits virtually all float operated cisterns and offers the highest level of inlet valve adjustability.

Features:

Quick and easy installation.
Height adjustability from 8" & 11½" in ½" increments
User friendly arm length adjustability from 185mm (7¼") to 285mm (11¼").
Lateral arm adjustment positions improve variability in arm and float positioning.
High and low pressure valve configurations to suit mains and tank fed systems.
Professional brass tail connection.

Technical data:

Brand - Dudley
Range - Beta+
Product Type - Telescopic Bottom Inlet Float Valve
Arm Length - 185mm (7¼") To 285mm (11¼")
Height - 8" To 11½" (In ½” increments)
Connection - ½" BSP Brass Tail
Valve Type - Diaphragm
Float Type - Ball (Not included, Available separately)
Operational Pressure - 0.1 To 14Bar
Arm Load Limit - Tested To 4.4N

Standards & Certifications:

Designed and manufactured in the UK to BS1212 Standard

Manufacturer Code
PSPBVP327645
Delivery Only
No
Brand
Dudley
Range
Beta+
Product Type
Telescopic Bottom Inlet Float Valve
Height
8" To 11½" (In ½” increments)
