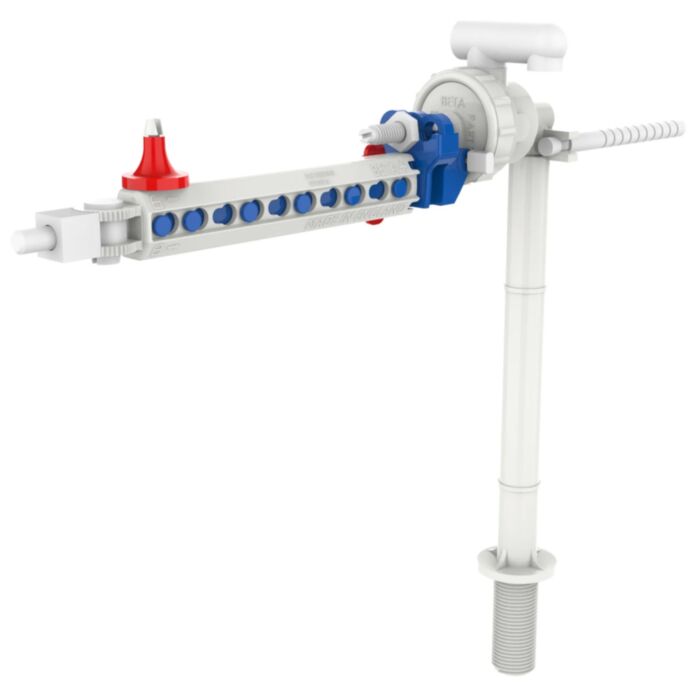

Dudley Beta+ Part 3 Bottom Inlet Float Valve Adjustable Arm

In stock
Product Code
109136705
Adjustable Bottom Inlet Valve that fits virtually all float operated cisterns and offers the highest level of inlet valve adjustability. Features: Quick and easy installati...Read more

DISCLAIMER

This product qualifies for next working day delivery provided it is in stock and your order is placed by 1pm Monday to Thursday. For full T&C's read our Delivery Information.

Your Price
£5.06 £4.22

Add to Project List

Adjustable Bottom Inlet Valve that fits virtually all float operated cisterns and offers the highest level of inlet valve adjustability.

Features:

  • Quick and easy installation.
  • User friendly arm length adjustability from 185mm (7¼") to 285mm (11¼").
  • Lateral arm adjustment positions improve variability in arm and float positioning.
  • High and low pressure valve configurations to suit mains and tank fed systems.

Technical data:

  • Brand - Dudley
  • Range - Beta+
  • Product Type - Part 3 Bottom Inlet Float Valve
  • Arm Length - 185mm (7¼") To 285mm (11¼")
  • Connection - ½" BSP Plastic Tail
  • Valve Type - Diaphragm
  • Float Type - Ball (Not included, Available separately)
  • Operational Pressure - 0.1 To 14Bar
  • Arm Load Limit - Tested To 4.4N

Standards & Certifications:

  • Conformity BS 1212-3

  • Manufacturer Code
    PSPBVP332318
  • Product Type
    Part 3 Bottom Inlet Float Valve
  • Range
    Beta+
  • Brand
    Dudley
  • Brand
    Dudley
