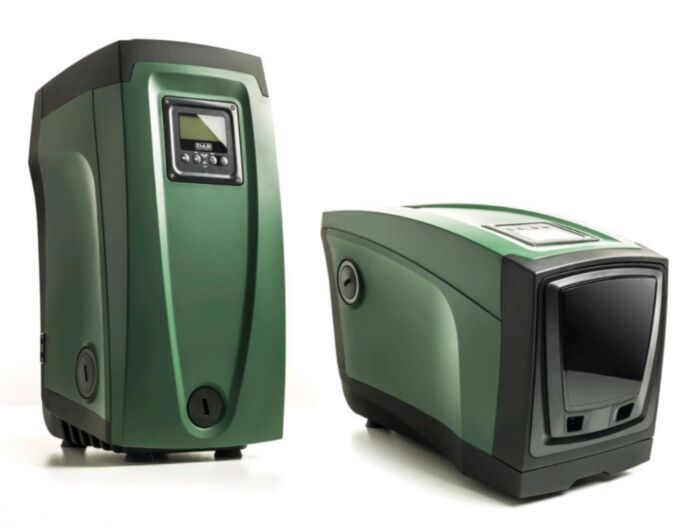

The most evolved ergonomic system in the world in the field of water pressurization for domestic and residential use.

Features:

• A patented booster system, unique in its category, with high performances, efficient, compact, easy and satisfying in the use both for the installer and the final user.
• The solution for water boosting in small dwellings, e.sybox offers the same advantages in collective residential applications, such as villas or condos.
• Wireless technology allows to set up booster sets up to 4 pumps.
• Horizontal or Vertical, in a ventilated room or in a recess, any setting will be perfect for making the best possible use of the e.sybox, which ensures a reduction of at least 30% of the dimensions as compared to any other traditional system.
• The noise perceived as well the vibrations are reduced to the minimum and the system is whisper-silent only 45dB in standard use.

Technical data:

• Operating range - Capacity up to 120l/min; head up to 65mtr
• Liquid quality requirements - Clean, free from solid or abrasive contaminants, non-viscous, non-aggressive, uncrystallised and chemically neutral
• Liquid temperature range (domestic use) - 0°C to +35°C
• Liquid temperature range (other use) - 0°C to +40°C
• Maximum suction depth - 8mtr - 7mtr 30/50 version
• Maximum ambient temperature - 40°C
• Maximum operating pressure - 8Bar (800kPa)
• Motor protection rating - IPX4
• Insulation class - F
• Insulation class - Horizontal or vertical fixed position
• Brand - DAB Pumps
