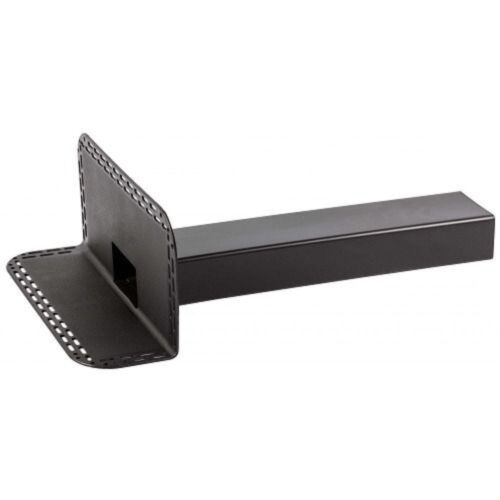

ClassicBond Angled Roof Drain 90x90x500mm

Suitable for use with ClassicBond and ClassicBond Pro membranes. The purpose of the drain is to be used as a wall scupper for easy drainage through walls and pitched roofs as well as the potential to be used as a vertical drain in box gutters. The outlet is mad e of IGOM, a compound of synthetic rubber.

Features:

• Can be used both as an external or internal drain and especially for horizontal drains through thick outer walls.
• The unit is used in conjunction with bends or fittings having seal rings and thus the joint can be within the wall and the down pipe can be placed at a minimum distance from the wall.
• Right angled flange 140x245mm with fastening holes.
• Outlet opening of 90x90mm.
• Standard outlet length of 500mm.
• Accessories of 90Degree shoe and 1mtr extension pipes.
• Leaf / gravel guard.
• Installation should be carried out with 3Degree slope.

Technical data:

• Brand - ClassicBond
• Product Type - Angled Roof Drain
• Material - Synthetic Rubber IGOM CE
• Colour - Black
• Outlet Internal With - 90mm
• Outlet Internal Height - 90mm
• Outlet Length - 500mm

Please Note:

• Mechanically fix the drain securely into deck.
• Ensure the outlet is securely connected to internal pipe work.
• Water Cut Off Mastic must be applied to the underside of membrane before clamping ring in installed.
• Ensure no roof debris is gathered in the drain before installation of leaf grate.
