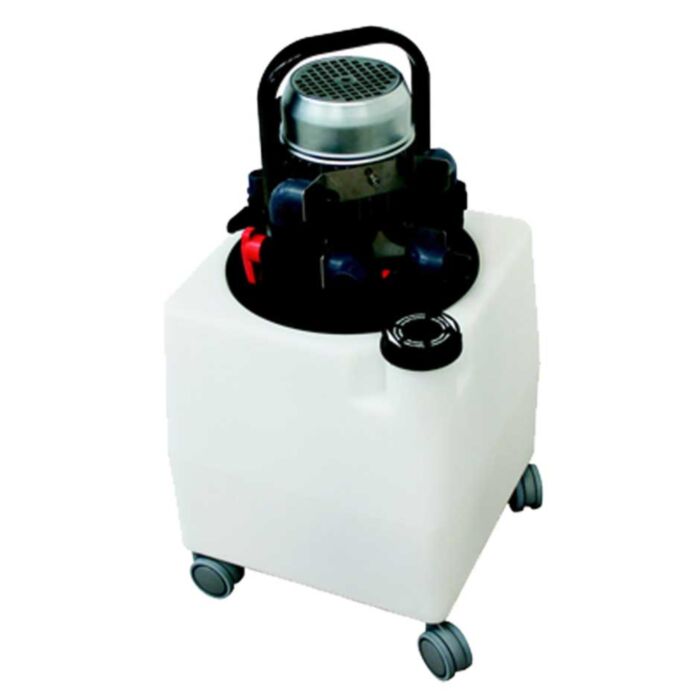

Used to clean fouled central heating systems.

Water treatment fulfils a number of roles within domestic central heating systems which can be summarised as follows:

• To minimise the corrosion of metals within the system
• To inhibit the formation of limescale
• To inhibit the formation of the scale and sludge
• To inhibit the growth of microbiological organisms
• To maintain or restore the energy efficiency of the system through a combination of the above effects
• To neutralise and dispose acidic waste safely, without damaging the environment

Features:

• Compact - Only 630mm high.
• Lightweight - 17kg empty.
• Easy to use - Fully easy-to-understand - no need for external training session.
• Save time and money.
• Simple & quick to connect to a heating system - All fittings and hoses included.
• Portable - Built in carry handle and wheels included.
• Large tank capacity of 36 litres.
• Compatible with all approved chemicals.
• Ideal for critical applications requiring high efficiency pumps.
• Powerful acid proof flushing pump - 0.50Hp and IP55 rated.
• 15m head (up to 20/30 radiators) performance.
• One visit required to flush entire system.
• Flow reverser - Dump facility.

Technical data:

• Height - 630mm
• Diameter - 350mm
• Weight (empty) - 17kg
• Weight (working) - 45kg
• Motor rating - 0.50Hp
• Full load current - 370W
• Input power - 230V - 50Hz
• Fuse rating - 13Amp
• Cable length - 2.5mtr
• Power connection - 13Amp plug BS 1363
• Motor insulation - IP55
• Inlet connection - ¾" Male
• Drain connection - ¾" Male
• Recirculation connections - ¾" Male
• Max. inlet pressure - 5Bar
• Max. drain pressure - 1.2Bar
• Max. recirculation pressure - 1.3Bar
• Working recirculation pressure - 1.3Bar
• Optimum flow rate for domestic properties - 50lpm
• Max. drain flow - 50lpm
• Max. recirculation flow - 60lpm
• Typical working recirculation flow - 50lpm
• Max. temperature recirculation liquid - 70°C
• Brand - Calmag

Supplied with:

• 2 x 8mtr Reinforced hose x ½" to be used for water inlet and dump
• 2 x 2mtr Flow & return hose - reinforced
• 2 x ½" Male - 15mm compression brass fittings
• 4 x ¾" Male brass hosetails
• Overflow cap
• Filling cap
• 6 x Jubilee clips
• Heating filter
• Powerflush pack (includes - Powerflush Extra, Rapid Cleanse & CM1-500)
