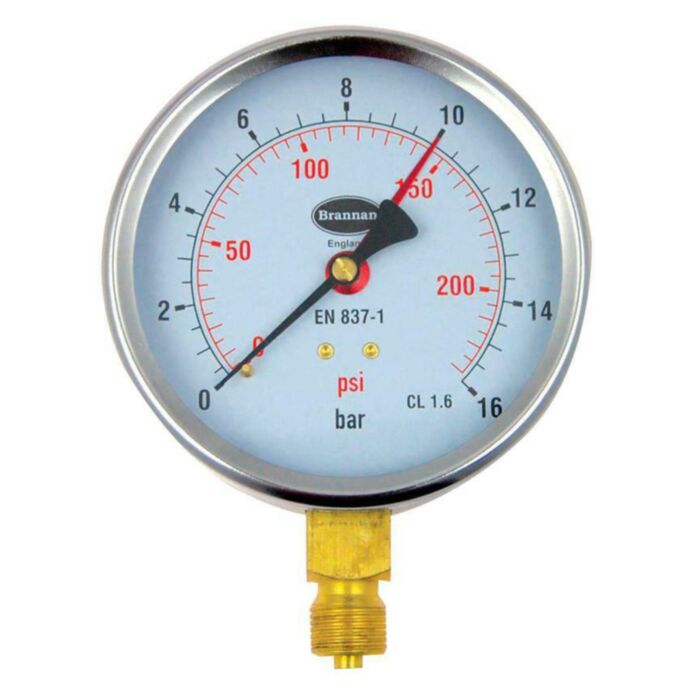

Brannan Pressure Gauge Bottom Connection 3/8" BSP 16Bar/Psi 100mm

Brannan Pressure Gauge Bottom Connection 3/8" BSP 16Bar/Psi 100mm

Name: Brannan Pressure Gauge Bottom Connection 3/8" BSP 16Bar/Psi 100mm
Brand: Brannan
SKU: 109135796
Price: 18.7 GBP
Availability: InStock

Brannan Pressure Gauge Bottom Connection 3/8" BSP 16Bar/Psi 100mm

In stock

Product Code

109135796

This black steel pressure gauge with bezel is designed for use in heating ventilation and air conditioning applications and is manufactured to Brannan’s unique design. Features: ...Read more

DISCLAIMER

This product qualifies for next working day delivery provided it is in stock and your order is placed by 1pm Monday to Thursday. For full T&C's read our Delivery Information.

Your Price

£18.70 £15.58

Out of stock

Product Information

This black steel pressure gauge with bezel is designed for use in heating ventilation and air conditioning applications and is manufactured to Brannan’s unique design.

Features:

This black steel case pressure gauge with stainless steel bezel has an accuracy class of 1.6.
Suitable for dry, indoor installations.
With 3/8" BSP connection.
Quality, reliable all-round pressure gauge.
Black steel pressure gauge with stainless steel bezel.
Adjustable loose red pointer.

Technical data:

Brand - Brannan
Product Type - Pressure Gauge Back Connection
Material - Steel
Diameter - 100mm
Connection Type - 3/8" BSP
Pressure - 16Bar / Psi
Filling - Dry
Working Pressure - Steady 75% Full Scale Range / Fluctuating 60% Full Scale Range
Operating Temperature Ambient - -20 to +60°C
Medium - -20 to +60°C
Storage Temperature - -40 to +60°C
IP Rating - IP43

Standards & Certifications:

Protection under IP43 (BS EN 60529:1992)
Calibration under UKAS certification

Manufacturer Code
34/656/0
Delivery Only
No
Brand
Brannan
Product Type
Pressure Gauge Back Connection
Material
Steel
Diameter
100mm
IP Rating
IP43
Connection Type
3/8" BSP
Pressure
16Bar / Psi
Max. Pressure
16Bar / Psi

Shipping and Returns

Check for Delivery

Returns

This product can be returned if returned unopened, unused and in a fully resalable condition, including the original packaging.

Click here for the MP Moran return policy

Datasheets

Brannan Pressure Gauge Bottom Connection 16Bar Psi 100mm Datasheet
