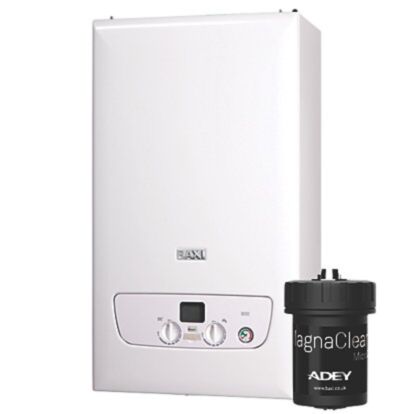

A combination boiler, also known as a condensing boiler, is a boiler that provides both hot water and central heating as part of one unit.

Features:

• The boiler is lightweight, small enough to fit into a 290mm deep cupboard, and has a built-in pipes behind the facility within the boiler casing, brass hydraulics, and a stainless steel heat exchanger.
• All models can be manually converted between natural gas or LPG without the need to purchase an accessory kit.
• Enables control of heating schedules remotely via the My BAXI APP.
• Saves time on installation and can be fitted first or last in the pipework installation sequence.
• Easily accessible and saves time during installation.

Technical data:

• Brand - BAXI
• Range - 800
• Product Type - Combi Boiler
• Heat Exchanger Material - Stainless Steel
• Depth - 285mm
• Width - 395mm
• Height - 700mm
• Voltage - 230V
• Frequency - 50Hz
• Wattage - 30kW
• ErP Rating - A
• IP Rating - IPX5D
• Weight - 28kg
• Max. Water Temp. - 95°C
• Pressure - 0.8-8Bar
• Expansion Vessel Size - 7ltr
• Flow Rate

Supplied with:

• Wall hanging bracket
• Adey MagnaClean Micro2
• Copper pipe tails
• Easy-Fill permanent filling link
• Copper Pipe tail Safety discharge 15mm
• Pipe tail Condense
• Copper Pipe tail Gas 22mm
• Copper Pipe tail Cold water inlet / DHW outlet 15mm
• Copper Pipe tail CH 22mm

Standards & Certifications:

• The gas installation should be in accordance with the relevant standards.
• In GB this is BS 6891 (NG). In IE this is the current edition of IS 813 Domestic Gas Installations.
• Multi strand flexible cable conforming to BS 50525-2-11.
