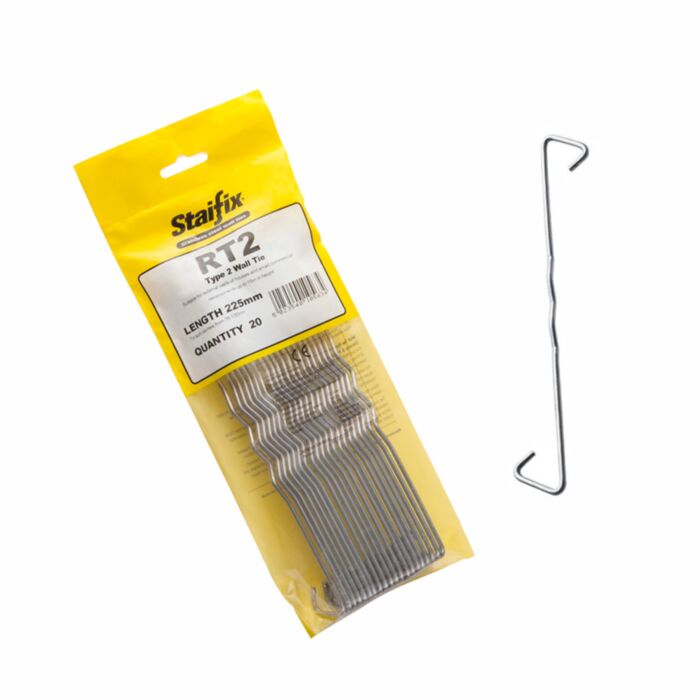

Ancon Staifix RT2 General Purpose Wall Tie 225mm 20pk

Ancon Staifix RT2 ’Type 2’ Masonry General Purpose Wall Ties are a general purpose tie for domestic and small commercial buildings made with box-form masonry walls.

Features:

• Specially designed safety ends provide excellent mortar key and reduce the risk of injury on site.
• Value-engineered design, manufactured from high tensile wire, minimises thermal loss.
• Multiple drips prevent water crossing the cavity whichever way up the tie is installed.
• Suitable for cavity widths from 76-100mm.
• Can be used in the construction of domestic and commercial developments up to 15 metres in height - Altitude and wind speed restrictions may apply. In many cases, Staifix RT2 wall ties can be used in buildings greater than 15 metres if shown to be adequate by calculation.
• Designed to replace the Double Triangle Tie.
• Can be used in line with NHBC standards.
• The RT2 has a measured dynamic stiffness of <113MN/m³ that meets the performance requirement of Approved Document E for use in external masonry walls.

Technical data:

• Brand - Ancon
• Range - Staifix RT2
• Product Type - General Purpose Wall Tie
• Material - Stainless Steel
• Finish - Corrosion Resistant
• Length - 225mm
• Quantity in Pack - 20

Standards & Certifications:

• Conforms to PD 6697 as a type 2 tie
• UKCA and CE Marked and can be used in line with NHBC standards.
