Ancon Staifix HRT4 Housing Wall Ties (Type 4/Type A) are used for tying two leaves of a cavity wall or separating wall where the first leaf has already been constructed. The wavy end of the tie ...Read more
DISCLAIMER
This product qualifies for next working day delivery provided it is in stock and your order is placed by 1pm Monday to Thursday. For full T&C's read our Delivery Information.

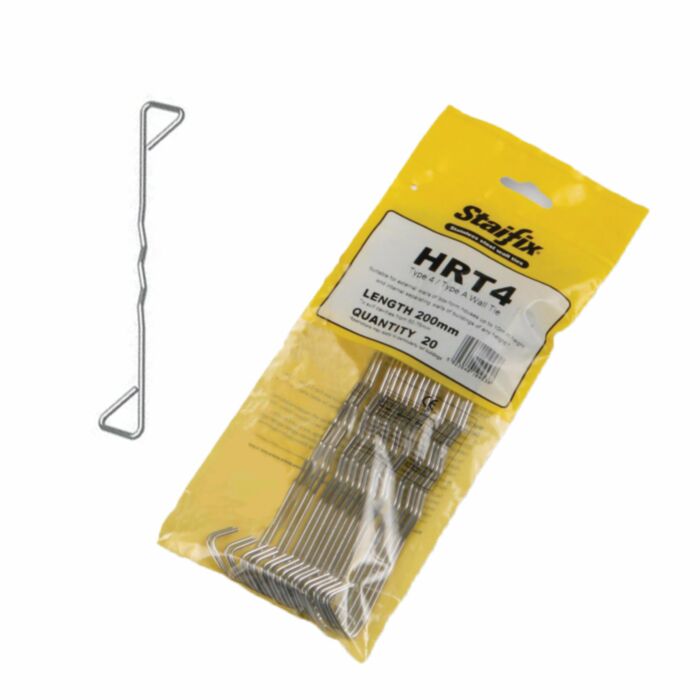

Ancon Staifix HRT4 Housing Wall Ties (Type 4/Type A) are used for tying two leaves of a cavity wall or separating wall where the first leaf has already been constructed. The wavy end of the tie is resin-bonded into the existing wall in a 10mm hole.
Features:
Specially designed safety ends provide excellent mortar key and reduce the risk of injury on site.
Value-engineered design, manufactured from high tensile wire, minimises thermal loss.
Multiple drips prevent water crossing the cavity whichever way up the tie is installed.
Suitable for cavity widths from 50-75mm.
Can be used in the construction of domestic houses up to 10 metres in height - Altitude and wind speed restrictions may apply.
Independent tests have proven the HRT4 has a measured dynamic stiffness of <4.8MN/m³ when installed at a standard 2.5 ties/m² spacing and is therefore suitable for internal separating (party) walls of new-build attached dwellings.
The HRT4 can be used with all approved robust details for cavity masonry separating walls, whether traditional or thin-joint blockwork (suitable for thin-joint construction with 3mm thick joints). Use of these details eliminates the need for pre-completion sound testing.
Designed to replace the Butterfly Tie.
Can be used in line with NHBC standards.
Technical data:
Brand - Ancon
Range - Staifix HRT4
Product Type - Light Duty Wall Tie
Material - Stainless Steel
Finish - Corrosion Resistant
Length - 200mm
Quantity in Pack - 20
Standards & Certifications:
Conforms to PD 6697 as a type 4 tie
UKCA and CE Marked and can be used in line with NHBC standards.
