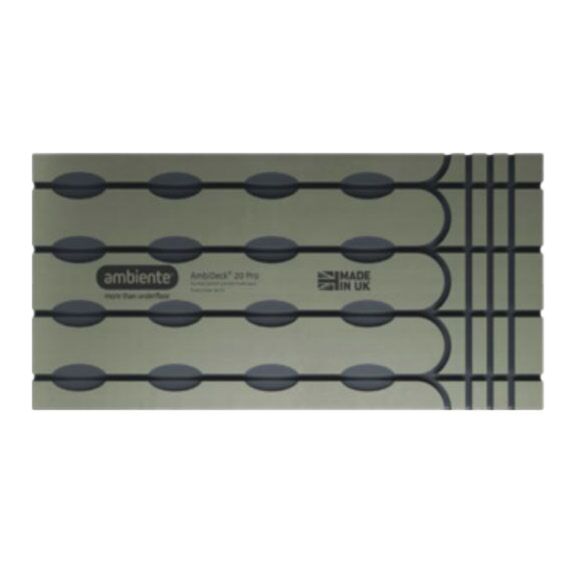

The AmbiDeck 20 Pro system really does give the best of both worlds - it provides a low-profile Underfloor Heating system, which incorporates an insulation layer and can be tiled directly. AmbiDeck 20 Pro consists of a high-density XPS insulation panel that is 20mm thick. The face of the panel is cement-coated, making it rigid and durable. It is grooved to take 16mm UFH pipework, with a 150mm radius return grooved into each panel, making the panel universal. Additional pipework channels can easily be routed/ grooved into the panel.

Features:

• Panels for main room coverage
• Thin build-up of 20mm.
• High output unique Lozenge-shaped board design that offers an extra 10% output.
• High thermal insulation material ( Extra 10% thermal value) over the traditional AmbiDeck models.
• High flow 16mm pipe ready.
• Output @ 0 tog, 45 degrees mean water temperature, 20 degrees room temperature 110W/m²

Technical data:

• Brand - AmbiDeck
• Range - 20 Pro
• Product Type - Underfloor Heating Panel
• Material - Dry Screed
• Colour - Grey
• Thickness - 20mm
• Width - 600mm
• Length - 1200mm
• Grooved for Pipe Diameter - 16mm
• Coverage - 0.72m²
• Weight - 4.1kg/m² or 15.1kg/m² with 6mm AmbiFibre Pro levelling Compound
• Compressive Strength - 300kPa
• Thermal Conductivity - 0.031W/m² k
• Fire Rating - Euro Class E

Please note:

• AmbiDeck 20 Pro must be laid onto a flat and level subfloor, which can be concrete or timber-based.
• Over a concrete floor, we recommend applying the AmbiDeck 20 Pro panels over a combed layer of flexible tiling adhesive.
• Over a timber floor, we recommend securing the panels down with a minimum of 9 screws.
