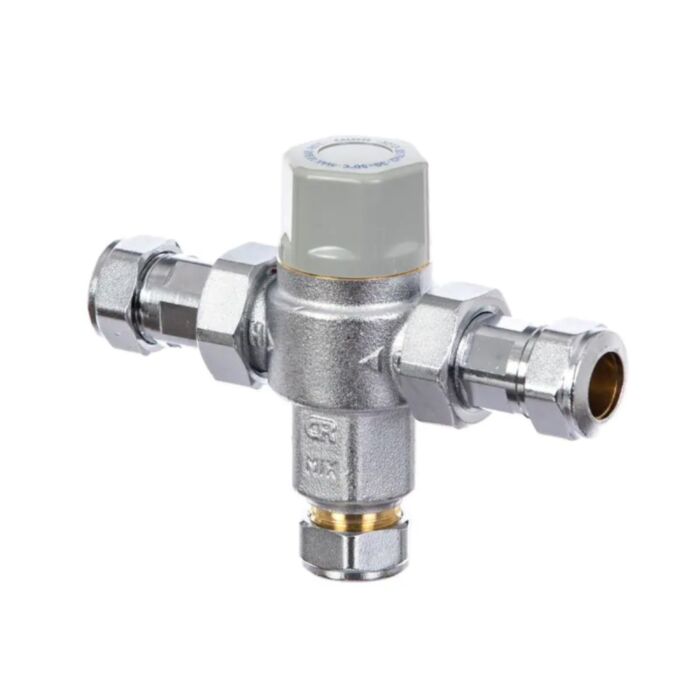

Altecnic Caleffi Merchant Thermostatic Mixing Valve 15mm

This failsafe merchant thermostatic mixing valve has been specifically designed and manufactured to meet the latest National Health Service model engineering specifications.

Features:

• During variations in the hot and cold water supply conditions and draw-off flow rates, thermostatic mixing valves maintain a constant and safe temperature for domestic hot water.
• The failsafe design shuts off the mixed water flow automatically in the event of a disruption in the hot or cold water supply to the valve.
• The merchant range of fail-safe thermostatic mixing valves has been designed and manufactured to meet requirements.

Technical data:

• Brand - Altecnic
• Product Type - Merchant Thermostatic Mixing Valve
• Diameter - 15mm
• Height - 99mm
• Width - 141mm
• Max. Pressure - 10Bar
• Min. Pressure - 0.2Bar
• Material - Stainless Steel / EPDM
• Max. Inlet Temperature - 85°C
• Accuracy Temperature - ±2°C
• Min. Flow For Stable Operation - 4lr/mtr
• Kv Value - 1.35m³/hr

Standards & Certifications:

• The valves have been independently tested and approved as type 2 valves under the TMV2 scheme by the WRc - NSF.
• Approved to EN1287:2017.
• EN1111:2017.
• WRAS Approved.
