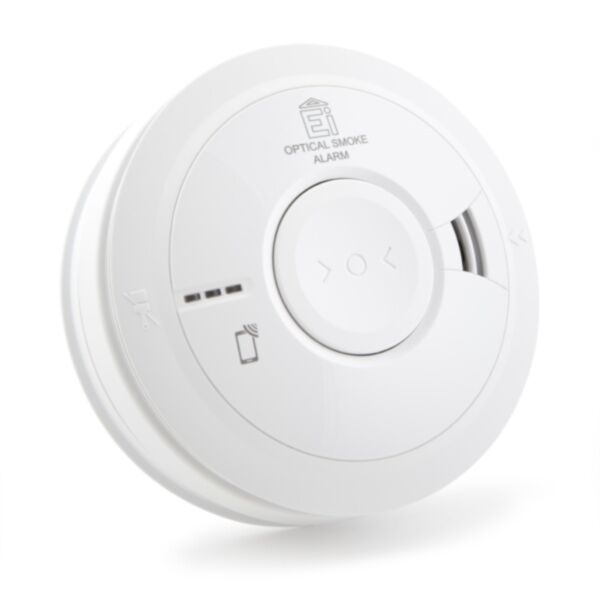

Aico EI3016 Optical Smoke Alarm Mains Powered With Rechargeable Lithium Back-Up

The Ei3016 Optical Smoke Alarm contains Aico tried and tested high performance optical smoke sensor, which is best for detecting slow, smouldering fires. In addition, the smoke chamber design, integrated insect screen and unique automatic dust compensation reduce the risk of false alarms. The Ei3016 Optical Smoke Alarm contains AudioLINK technology, which allows you to extract real time data from the alarm using its sounder directly to a smartphone or tablet via an App. A simple to read report is generated displaying details such as activation dates, sensor status and alarm life, that can be emailed to help form part of property records. The Ei3016 Optical Smoke Alarm is SmartLINK compatible, Simply plug in an Ei3000MRF module for wireless interconnection, data extraction and real-time notifications of alarm activations and events via the SmartLINK Gateway and Portal. The alarm has a unique self-monitoring dust compensation mechanism incorporated into its software, which will allow the alarm to tolerate up to twice as much more dust contamination than a conventional optical alarm. The optical sensor chamber continually self-monitors minute changes in dust levels. If the dust accumulates to a certain level, the alarm automatically recalibrates the alarm trigger point. The Ei3016 Optical Smoke Alarm Heat Alarm is fully compatible with all other Aico alarms and accessories whether a system needs upgrading or an existing system needs expanding; and works with either hard-wired, RadioLINK or hybrid interconnecting systems.

Features:

• Contains a high performance optical sensor.
• Mains powered with 10 year rechargeable lithium cell back up.
• Add an Ei3000MRF module for wireless interconnection and data extraction.
• AudioLINK data extraction technology.
• Compatible with other Aico mains powered devices.
• Dust compensation, unique self monitoring mechanism.
• Easi-fit base.
• 10 year life.

Technical data:

• Brand - Aico
• Product Type - Optical Smoke Alarm
• Material - UL 94 V0 Flame Retardant Plastic
• Colour - White
• Projection - 55mm
• Width - 150mm
• Box Dimensions - 180mm x 155mm x 62mm
• Weight - 336g (product only), 402g (boxed)
• Sensor Type - Optical
• Supply Voltage - 230V AC, 50Hz
• Power Consumption - 0.25W (Standby)
• Battery Back-Up - Rechargeable Lithium Cells
• Sound Level - 85dB(A) at 3mtr
• Button Test - Checks sensor, electronics and sounder
• Silence Function - Silences alarm for 10 minutes
• Silence Function - Silences fault beeps for 12 hours
• AudioLINK - Enabled
• SmartLINK - Compatible via the Ei3000MRF Module
• Indicator LED Green - Power
• Indicator LED Red - Alarm / Silence mode / Memory
• Indicator LED Yellow - Fault Event
• Memory - Records last alarm event
• Fixing - Easi-fit base (supplied)
• Operating Temperature - -10°C To 40°C
• Humidity Range - 15% To 95% relative humidity
• Guarantee - 5 Years

Standards & Certifications:

• CE and Kitemarked to BS EN 14604: 2005.
• Suitable for installations needed to comply to BS 5839-6: 2019 Grade D1.

Please Note:

• The best location to install your smoke alarm is in the centre of the ceiling rather than on the wall. During a fire, smoke initially rises and then spreads to the sides of the room. By installing the alarm on the ceiling, this ensures that you receive the earliest possible warning of a fire.
