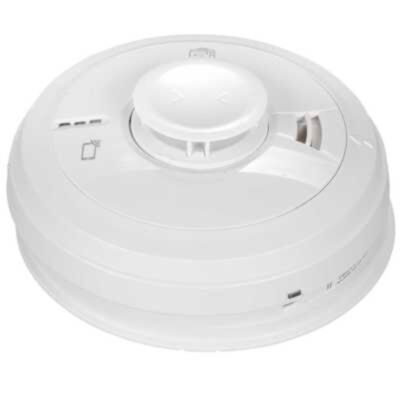

Aico Ei3014 Heat Alarm Mains Powered With Rechargeable Lithium Back-Up

Features:

• SmartLINK compatible - plug in an Ei3000MRF module for wireless interconnection, data extraction and real-time notifications of alarm activations and events via the SmartLINK Gateway and Portal.
• The Ei3014 contains AudioLINK technology, which allows you to extract real time data from the alarm directly to a smartphone or tablet via the AudioLINK App.
• In the event of mains failure, the 10 Year+ built in tamper-proof rechargeable lithium cells will provide back-up supply and continuous operation.
• The memory feature allows an alarm that has previously activated to be easily identified (through the red flashing LED).
• The thermistor has a smaller thermal mass enabling it to give faster alarm responses when the trigger temperature of 58°C is reached.
• The silence function allows the alarm/ system to be silenced in the case of a false/ nuisance alarms and low battery/ fault beeps.
• Any fault condition found will be indicated by a combination of yellow LED flashes and/or audible beeps.
• The alarm is fitted with a large Test/ Silence button to facilitate frequent testing of the alarm and system.
• The Ei3014 Heat Alarm contains a high performance thermistor to provide protection from fire.
• The Ei3014 self-checks its sensor, battery and internal circuitry every 48 seconds.
• The alarm is best for detecting heat build-up from large flaming fires.

Technical data:

• Material - Plastic
• Weight - 312g
• Dimensions - 150x66mm
• Voltage: 230V AC, 50Hz
• Power Consumption (standby) - 0.25W
• Sensor Type (Activates at 58°C) - Thermistor Class A1
• Battery back-up - Rechargeable lithium cells
• Sound Level (at 3 metres) - 85dB(A)
• Operating Temperature - 0°C to 40°C
• Humidity Range - 15% to 95% RH
• Button Test - Simulates a high temperature to check thermistor, electronics and sounder
• Silence Function - Silences alarm for 10 minutes, Silences fault beeps for 12 hours
• AudioLINK - Enabled
• SmartLINK - Compatible via the Ei3000MRF module
• Indicator LED’s - Green - Power, Red - Alarm/ Silence mode/ Memory, Yellow - Fault/ End of life
• Memory Feature - Records last alarm event
• Fixing - easy-fit base
• Voltage - 230V AC, 50Hz
• Brand - Aico

Standards & Certifications:

• BS 5446-2:2003
• KM 83678
