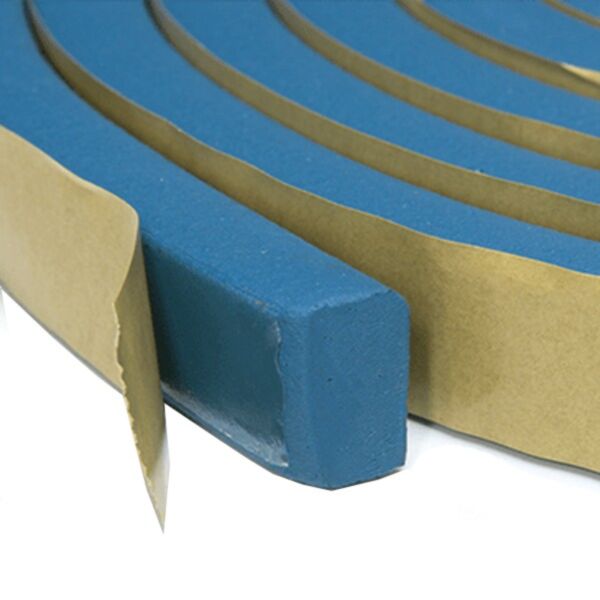

Adcor 500S Hydrophilic Water Bar 25x20mm 5mtr

In stock
Product Code
109112219
A conformable, swellable polymer/butyl rubber waterstop strip that expands in contact with water. When fully encapsulated by poured concrete, the expansive forces form a seal against concrete fa...Read more

DISCLAIMER

This product qualifies for next working day delivery provided it is in stock and your order is placed by 1pm Monday to Thursday. For full T&C's read our Delivery Information.

Your Price
£147.82 £123.18

Add to Project List

Select branch to check stock

Select postcode to see availability

A conformable, swellable polymer/butyl rubber waterstop strip that expands in contact with water. When fully encapsulated by poured concrete, the expansive forces form a seal against concrete faces. The seal resists hydrostatic pressure, stopping water from entering sub-structures. It has been specifically developed to provide higher performance.

Features:

  • Controlled volumetric expansion, reduces risk of concrete spalling.
  • Conformable, can be installed onto a variety of irregular substrates.
  • Superior performance from controlled, reproducible, volumetric expansion.
  • Cohesive strength maintained after volumetric expansion.
  • Malleable and plastic, enabling easy application to a variety of concrete profiles.
  • Retains cohesive strength at both original and expanded volume.
  • No need for protective steel mesh.
  • Resists at least 6Bar (60mtr) hydrostatic pressure.
  • Volumetric expansion min 100% in cement water.
  • Simple overlap jointing on site.
  • Reproducible swell after wet/dry cycling.
  • Can be easily joined to GCP PVC waterstops at movement joints.
  • Unaffected by freeze/thaw cycling.

Applications:

  • Construction joints in in-situ concrete structures.
  • Casting new concrete against existing.
  • Floor slabs cast against diaphragm retaining walls, steel sheet piles and secant piled walls.
  • Joints between floor slabs and pile caps.
  • Pipe penetrations through floors and walls.
  • Remedial ‘breaking out’ of concrete.

Technical data:

  • Brand - Adcor
  • Product Type - Hydrophilic Water Bar
  • Colour - Light Blue
  • Depth - 25mm
  • Width - 20mm
  • Length - 5mtr
  • Volumetric Expansion in Cement Water - Min. 100%
  • Water Pressure Resistance - > 6Bar (60mtr)
  • Density 1.46kg/dm
  • Weight - 0.7kg/m
  • Maximum Bend - 180°C At 0°C
  • Application Temperature Range - -15°C To 60°C
  • Service Temperature Range - -45°C To 120°C
  • Min. Concrete Cover - 70mm
  • Min. Overlap - 100mm

Please Note: Not suitable for use in movement joints. Not suitable for use with precast concrete components.

  • Manufacturer Code
    007500S
  • Product Type
    Hydrophilic Water Bar
  • Width
    20mm
  • Length
    5mtr
  • Colour
    Light Blue
  • Depth
    25mm
  • Weight
    0.7kg/m
  • Brand
    Adcor
  • Brand
    Adcor
Check for Delivery

Returns

This product can be returned if returned unopened, unused and in a fully resalable condition, including the original packaging.

Click here for the MP Moran return policy
